2.4G wireless transmission: Adopting advanced point-to-point transmission technology, featuring long transmission distance and strong anti-interference ability;
Transmission distance: 100 meters (in open areas without obstacles and on flat ground);
Image delay: Millisecond-level delay, which is 130ms (under good signal conditions);

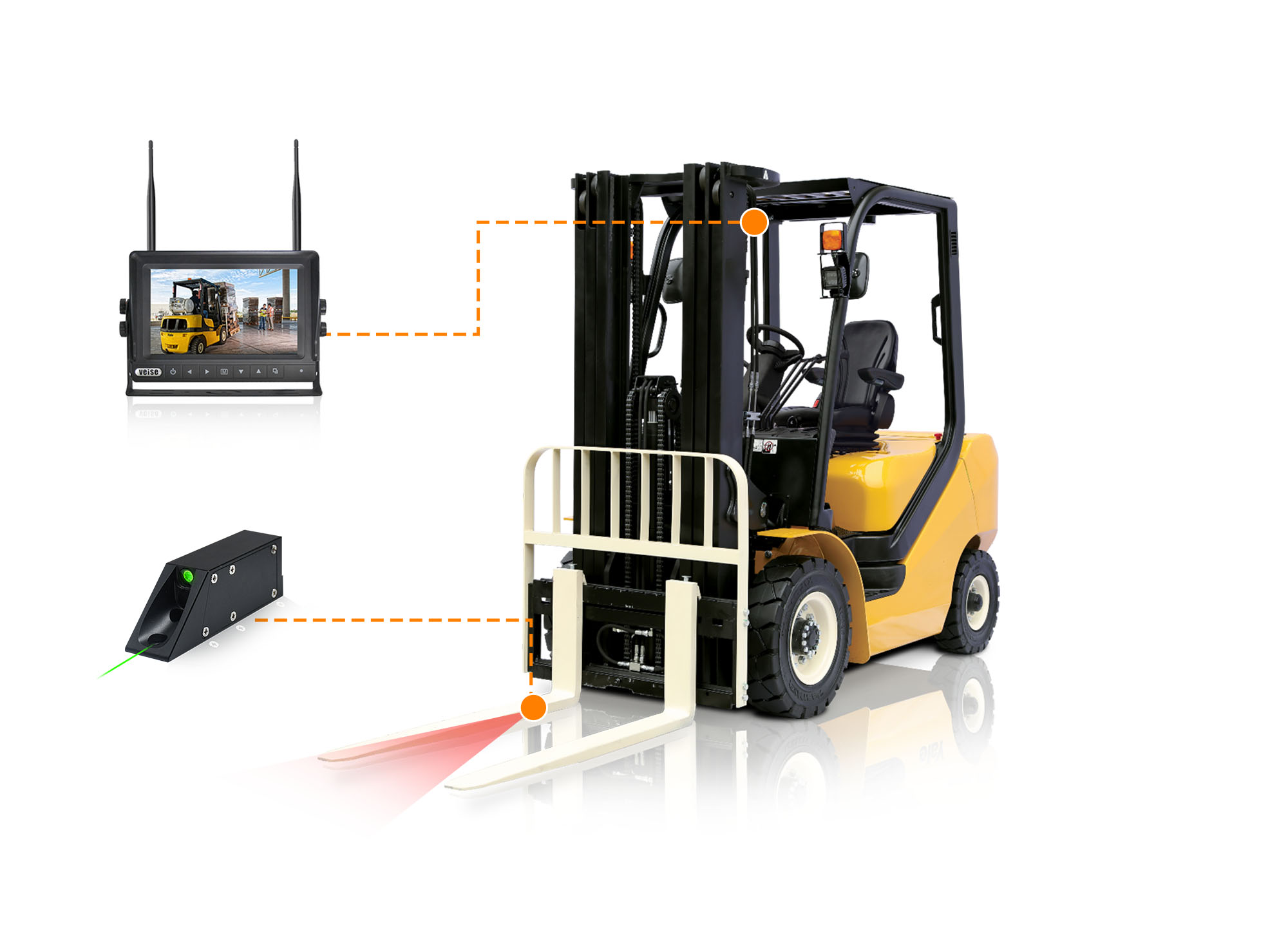

Positioning function: The image is integrated with a linear laser marker for positioning, which can accurately locate the position where the fork head is inserted into the pallet;
Camera protection: Made of 304 stainless steel, with anti-collision, explosion-proof and waterproof performance;
Installation and battery life: Battery-integrated wireless camera, designed with wire-free and intelligent power-saving mode, easy to install;
Overall performance: Excellent overall performance, clear image quality and good color reproduction.

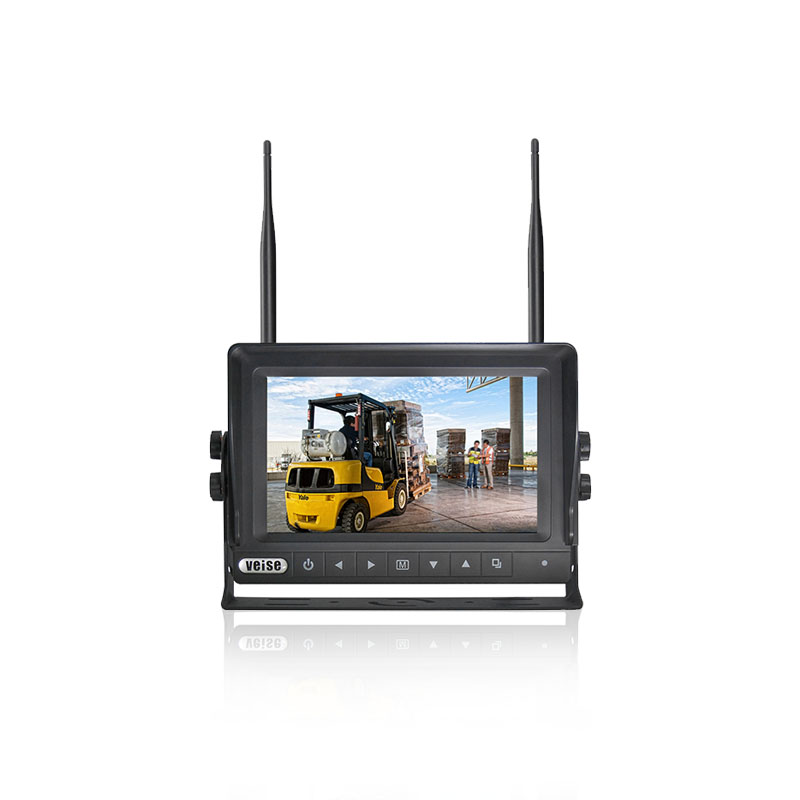

| Model | MWHD-754H |
| Display Device | Wireless Waterproof HD Color LCD Monitor |
| Color LCD Screen | 7-inch IPS Digital Display |
| Operating Frequency Range | 2400 ~ 2483.5 MHz |
| Receiver Sensitivity | ≤ -86 dBm (Max Rate: 300Mbps, Modulation: 802.11 b CCK) |
| Transmission Distance | 100 meters |
| Image Delay | Less than 130 ms |
| Antenna Gain | Dual Antenna 5 dB |
| Image Rotation | Up / Down / Left / Right |
| Display Mode | Single / Dual / Triple / Quad View |
| Color System | PAL / NTSC (Optional) |
| Resolution | 1024 × (RGB) × 600 |
| Viewing Angle (L/R/U/D) | L/R/U/D: 85° |
| Contrast Ratio | 800:1 |
| LED Backlight Brightness | 600 cd/m² |
| Response Time | 25 ms |
| Operating Temperature | -20℃ ~ +70℃ |
| Storage Temperature | -30℃ ~ +80℃ |
| Load Dump | ISO16750-2 Standard (24V System: Us=174V, Ri=4Ω, td=350ms) |
| Vibration Resistance | 5G (Compliant with GB/T 2423.56-2023 Standard) |
| Protection Rating | IP68 |
| Input Power Supply | DC 8V ~ 32V (Max 4.5W) |
| Dimensions (L × W × T) | 220 mm × 150 mm × 86 mm (Including Bracket) |

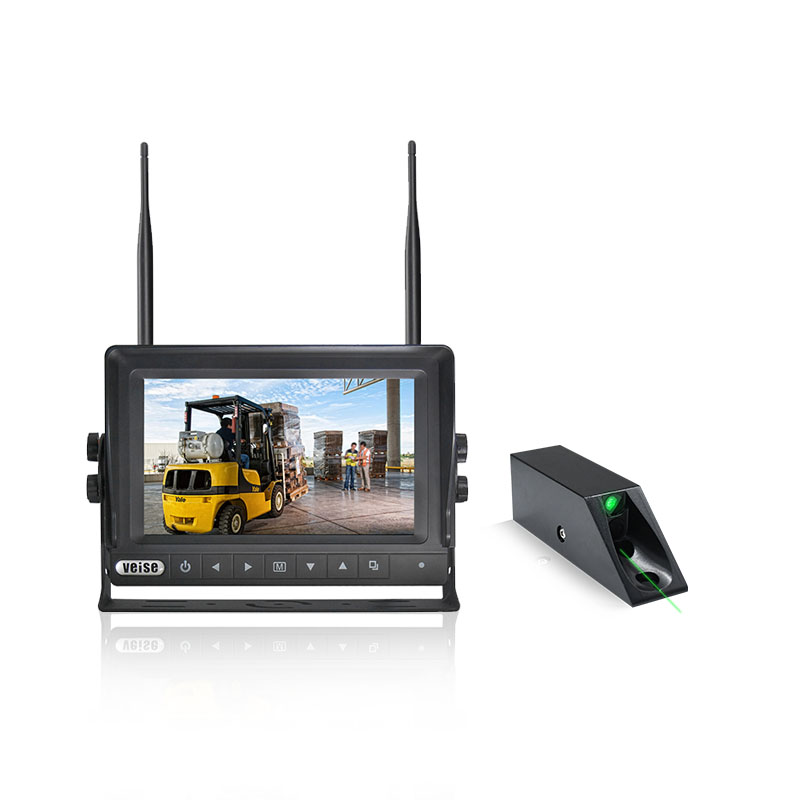

| Model | CWHD-23A2M |
| Camera | 1080P Wireless Stainless Steel Forklift Camera |
| Operating Frequency Range | 2400 ~ 2483.5 MHz |
| Transmit Power | 19 dBm (Max Rate: 300Mbps, Modulation: 802.11 b CCK) |
| Transmission Distance | 100 meters |
| Antenna Gain | 3 dB (Built-in Antenna) |
| Image Sensor | 1/3.7" Color CMOS |
| Resolution | 1920 × 1080 |
| Video Quality | 1080P |
| Viewing Angle | 52° |
| Laser Positioning | Green Line Laser Positioning |
| Video Format | Auto |
| Waterproof Rating | IP69K |
| Shock Resistance | 5G (Compliant with GB/T 2423.56-2023 Standard) |
| Input Power Supply | DC 12V (Max 2W) |
| Dimensions (L × W × T) | 116 mm × 37 mm × 29.7 mm (Excluding Cable) |
| Housing Material | 304 Stainless Steel Black Anti-collision Housing + Insulated Housing Required |
*This product information is for reference only! If there is any change, the actual product shall prevail, the final interpretation right belongs to our company!
