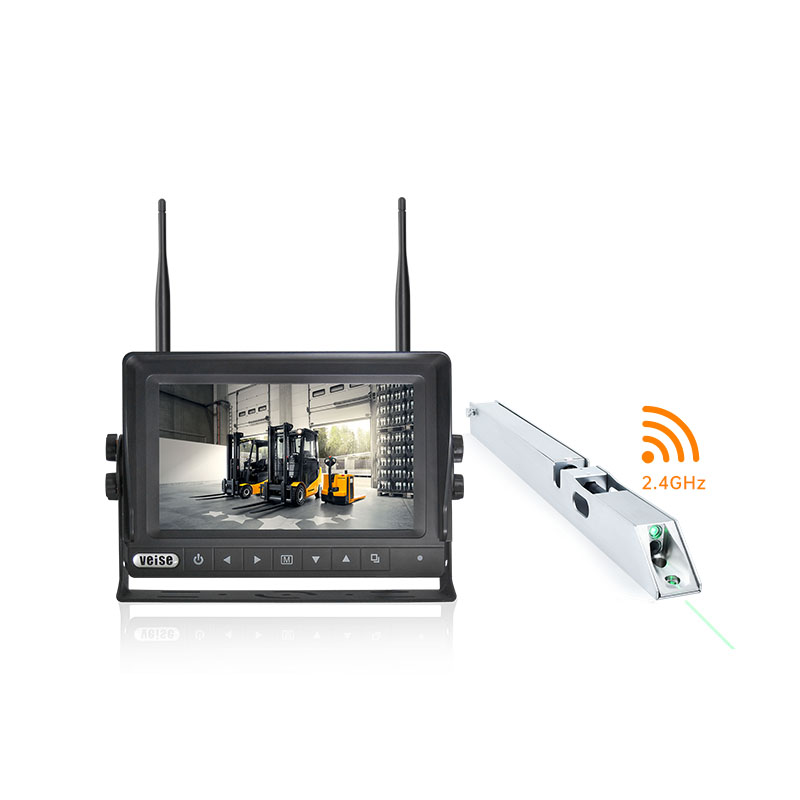

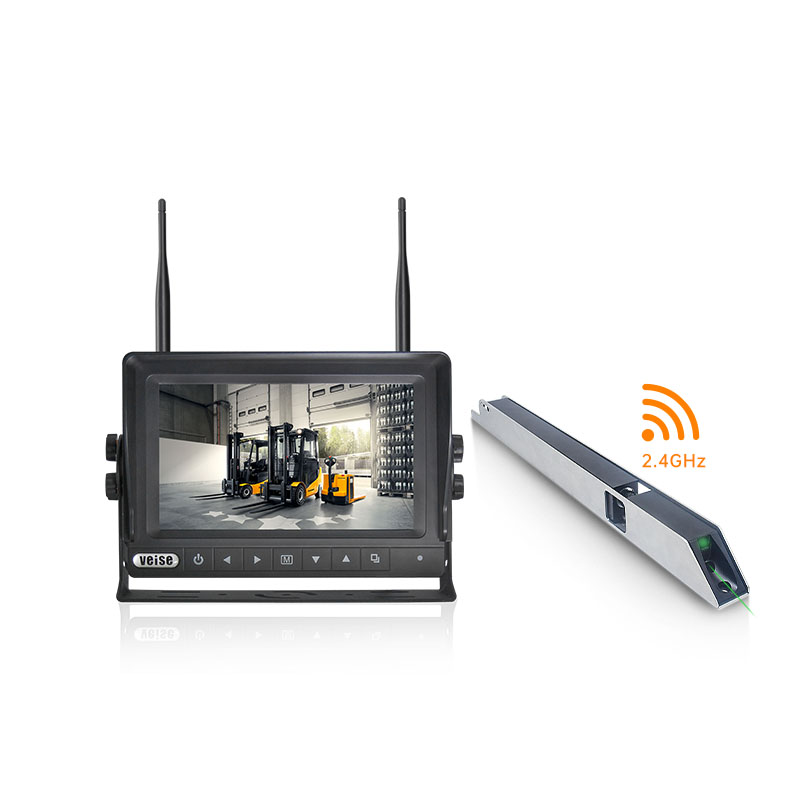

2.4G wireless transmission: Adopting advanced point-to-point transmission technology, featuring long transmission distance and strong anti-interference ability;
Transmission distance: 100 meters (in open areas without obstacles and on flat ground);
Image delay: Millisecond-level delay, which is 130ms (under good signal conditions);

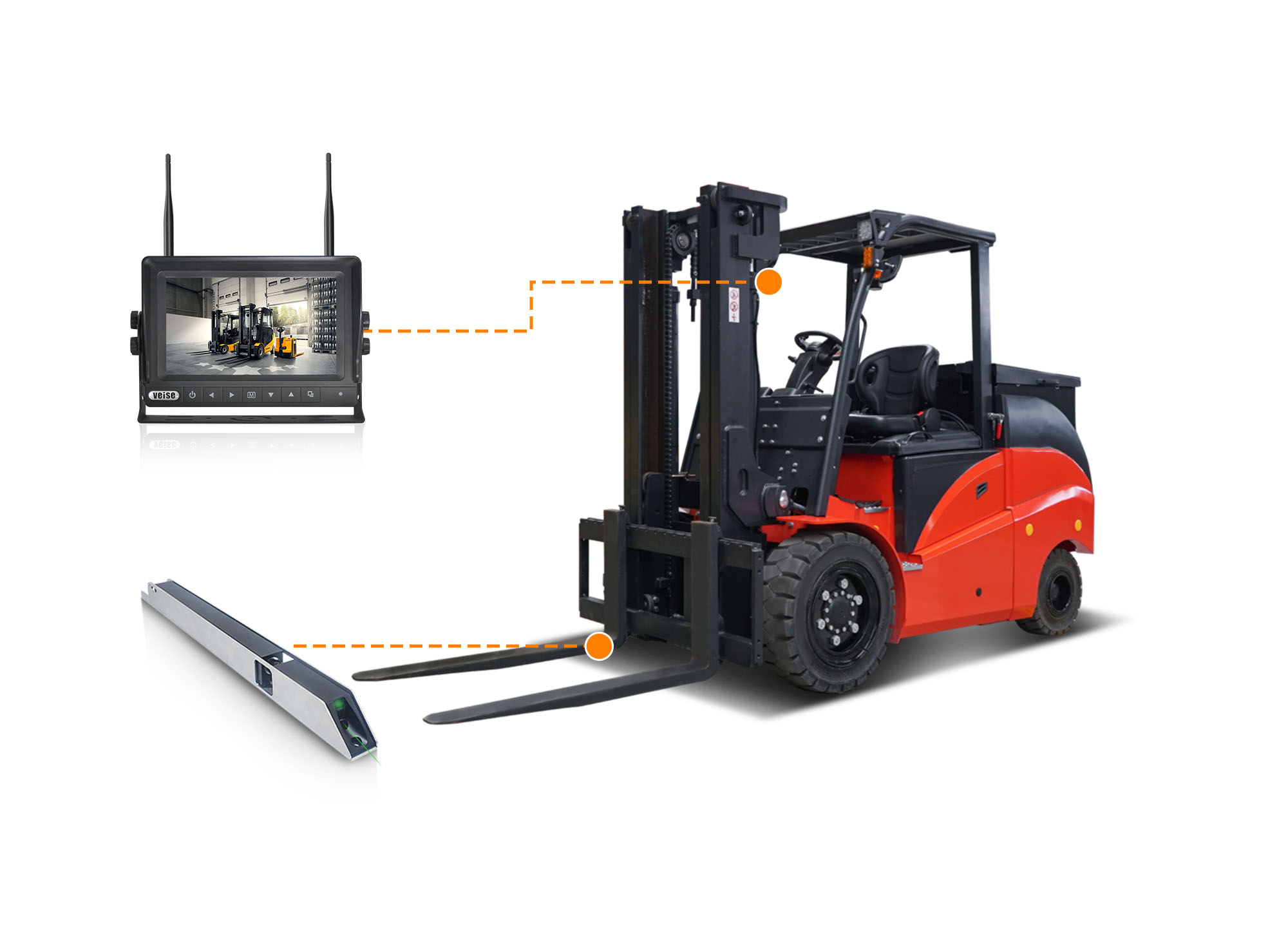

Positioning function: The image is integrated with a linear laser marker for positioning, which can accurately locate the position where the fork head is inserted into the pallet;
Camera protection: Made of 304 stainless steel, with anti-collision, explosion-proof and waterproof performance;
Installation and battery life: Battery-integrated wireless camera, designed with wire-free and intelligent power-saving mode, easy to install;
Overall performance: Excellent overall performance, clear image quality and good color reproduction.
| Category | Parameter |
|---|---|
| Display | |

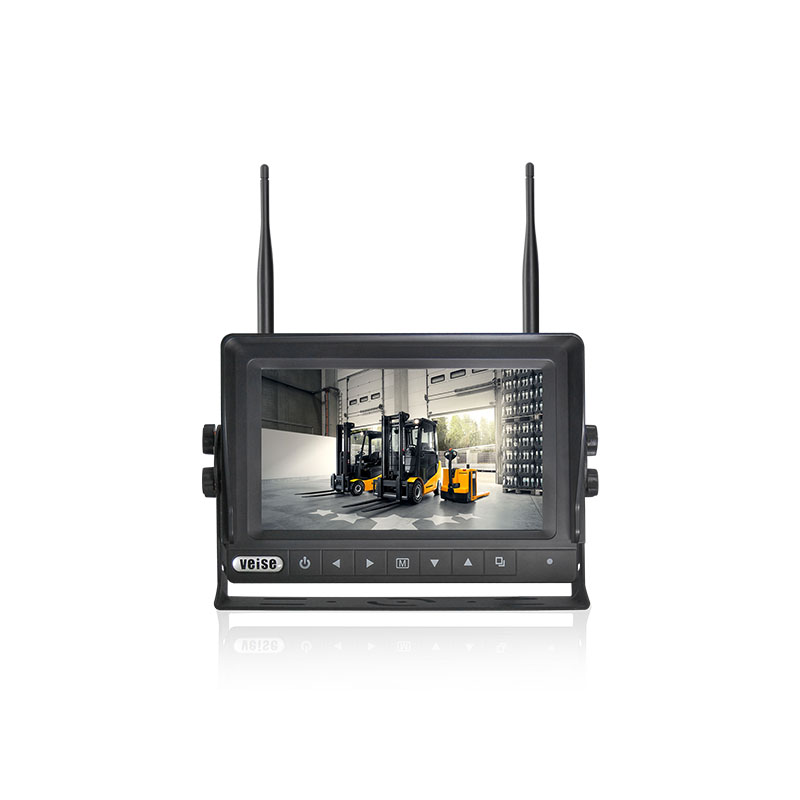

| Type | 7-inch IPS display |
| Resolution | 1024×(RGB)×600 |
| Viewing Angle | L/R: 85°/85°, U/D: 85°/85° |
| Contrast Ratio | 800:1 |
| LED Backlight Brightness | 600 cd/m² |
| Wireless Receiver | |
| Receiver | Built-in 2.4G wireless receiver |
| Operating Frequency | 2400 ~ 2483.5 MHz |
| Receiver Sensitivity | ≤-86 dBm (1 MHz QPSK MD 300 RE) |
| Reception Distance | Up to 100 meters in open area |
| Display Mode | Single / Dual / Triple / Quad display |
| Electrical | |
| Load Dump | ISO 16750-2 standard (24V system Us=174V, Ri=4Ω, td=350ms) |
| Operating Temperature | -20℃ to +60℃ |
| Storage Temperature | -30℃ to +80℃ |
| Input Power | DC 8V to 32V (Max 5W) |
| Dimensions | 216 x 150 x 80 mm (L x W x T) |
| Camera | |

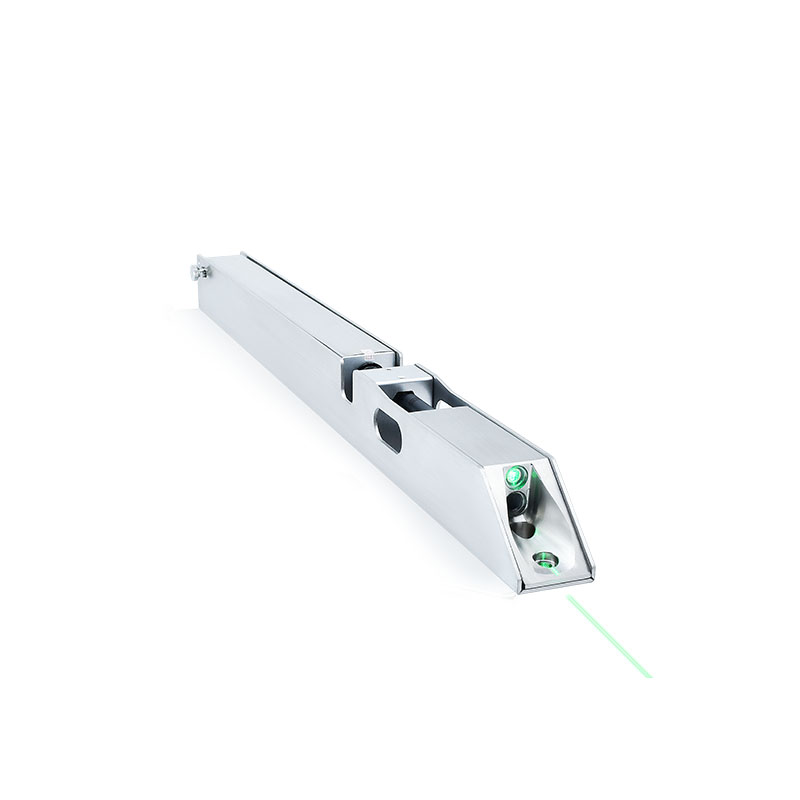

| Type | Wireless digital integrated battery camera with laser positioning |
| Transmit Power | 18 dBm |
| Image Sensor | 1/2.9" color CMOS |
| Effective Pixels | 1920(H) x 1080(V) |
| Resolution | 1080P |
| Minimum Illumination | 1 LUX |
| Horizontal Angle | 52° |
| Laser Angle | Green line laser |
| Waterproof Rating | Stainless steel IP69K |
| Shock Resistance | 5G |
| Input Power | DC 12V (battery powered) |

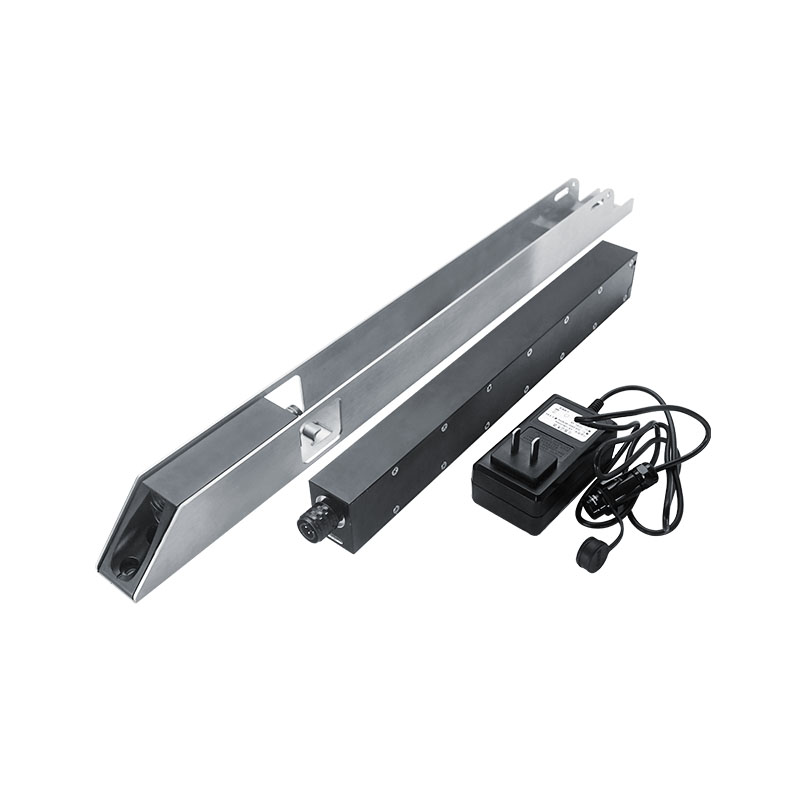

| Power Bank | |
| Material | 304 stainless steel integrated smart battery |
| Battery Type | Original lithium-ion battery |
| DC Input | DC 12.6V / 2A |
| DC Output | 12.6V (1A) |
| Smart Power Saving | Power output when vehicle is moving; no output when stationary (auto-off after 4 min) |
| Battery Indicator | Red - 25%, Green - 50%, Blue - 70%, Three-color - 100% |
| Charging Temperature | 0℃ to +40℃ |
| Discharging Temperature | -10℃ to +50℃ |
| Waterproof Rating | IP66 |
| Product Dimensions | 520(W) x 44.5(H) x 35(D) mm |
*This product information is for reference only! If there is any change, the actual product shall prevail, the final interpretation right belongs to our company!
