AI Wireless Magnetic Battery Operated Portable Backup Camera System

  • Model : HDWS-772MD362M1-AI
  • Summarize : This AI-powered HD Wireless Magnetic Battery Operated Portable Backup Camera System exemption from arranging electronic cables ,AI-based automatic pedestrian and vehicle detection features ,widely used in mechanical equipment vehicle blind spot detection(BSD) pedestrian & vehicle detecting monitoring,households baby, home and ivestock monitoring., AI HD mobile wireless camera is powered by a built-in rechargeable battery and magnetic-suction base, which can quickly move and install machinery, equipment, vehicles and activity places.. 7-inch wireless monitor offering both single and split-image display options, AI-based customizable warning area settings. built-in buzzer with a three-level safety audible and visual alarm, it wirelessly auto controls the camera’s power supply for energy-saving modes. The system uses multi-frequency hopping for automatic pairing, anti-interference, and offers a clear transmission range of Up to 200m Clear Line of Sight
  • More Info : Online Service

Product Features

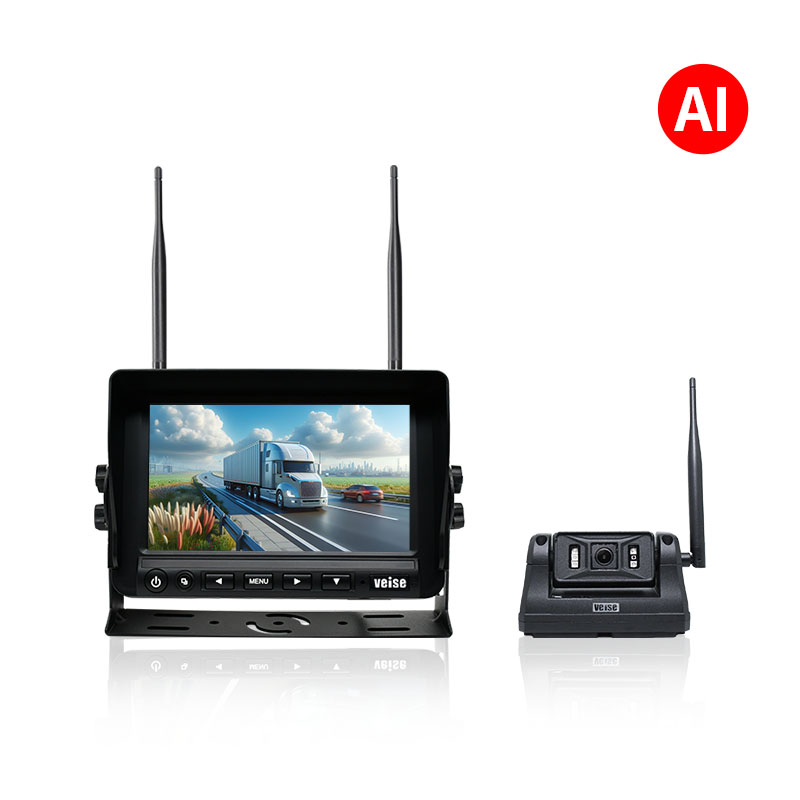

AI HD Wireless Magnetic Battery Operated Portable Backup Camera System

HD Magnetic Backup Camera System with Built-in Battery Wireless Camera for Trailers Trucks,Trucks, Campers, RVs, Trailers, Travel Trailers etc .Most customers used for Tractors Agri Equipment and baby monitoring etc. It easily attaches and detaches to deliver a wireless video feed to a video monitor.

The wireless backup camera system includes a magnetically mount rechargeable backup camera, this system features a powerful 2.4GHz signal with a wireless range of up to 200m.Obstacles in the way of the wireless signal will reduce the wireless distance slightly.

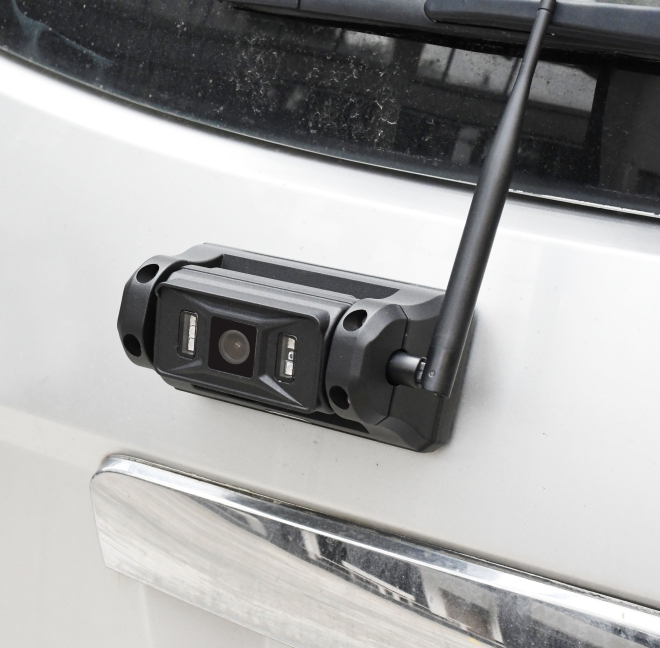

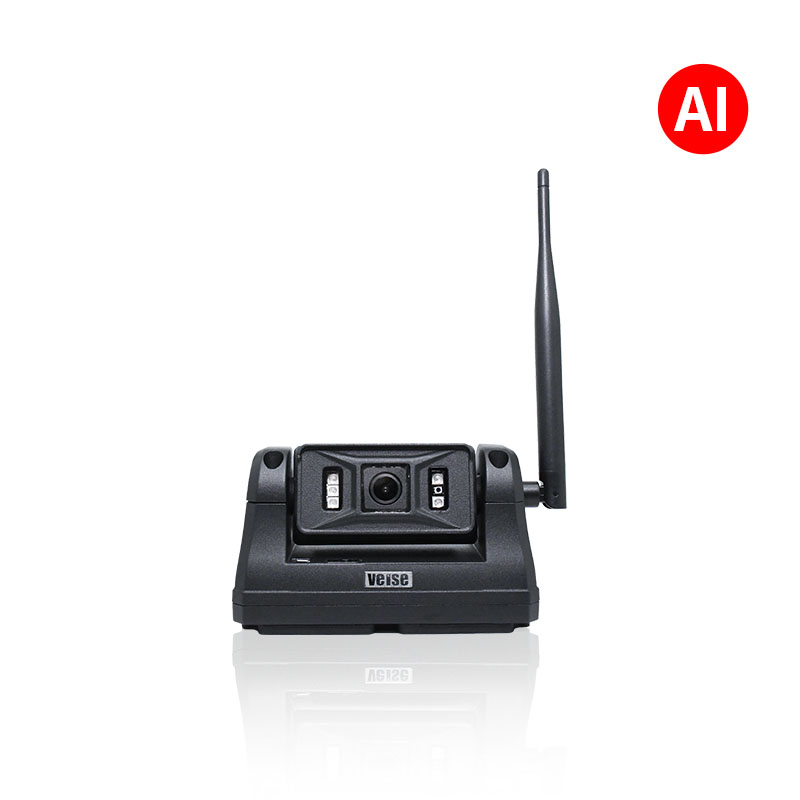

HD Magnetic Wireless Hitch Backup Camera

Easily hitch the trailer to your vehicle, and no need to get off the vehicle to see if it is hitched properly.easy 2-min DIY install. Magnetic wireless backup camera attaches instantly without drilling or wiring. Built-in rechargeable lithium battery that provides 17 hours of operation during the day. IR LEDs for improved nighttime images, and drivers will have a 130-degree view of their surroundings. HD image with enhanced IR night vision for safer driving.IP69K weatherproof battery powered camera ensures reliable performance in any weather condition.

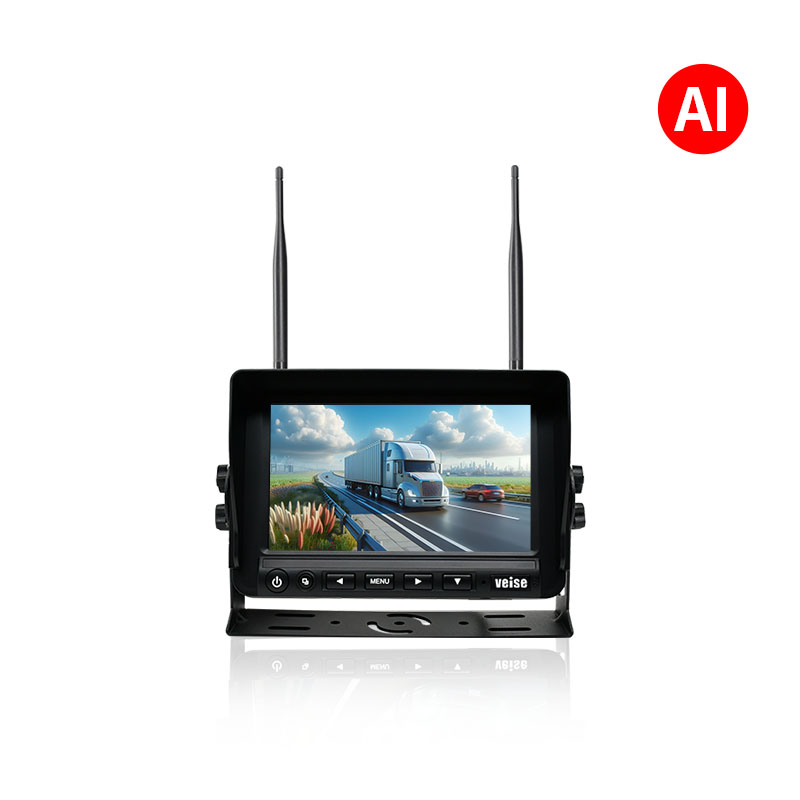

7-inch HD IPS Screen Wireless Monitor

Built-in 2.4GHz wireless receiver, 1024x600 high Resolution and 600cd/㎡ high brightness. Multi-frequency point frequency hopping code,  anti-channeling interference, up to 200m clear line of sight . Automotive industry grade DSP,  graphic OSD menu sets the functions of image mirror and normal image, reversing scale, and triggering priority application respectively. Free Working Voltage DC8~32V, load dump pulse voltage circuit design, reverse connection protection circuit design, LED thermal response constant current and constant voltage protection circuit design to avoid improper use, automobile pulse voltage damage and guarantee of shelf life.

Product Parameters

Wireless HD Monitor (MWHD-772M-AI)

Display Screen 7-Inch IPS Screen
Wireless ReceivingBuilt-In 2.4G Wireless Reveiver
Image DisplaySingle/Dual Image Display
Operating Frequency2400〜2483.5MHZ
Receving Sensitivity≤-86 DB
Receving DistanceUp to 200m Clear Line of Sight
Code Selection Of Multi-Frequency Point Automatic Frequency Hopping Channel80
Resolution1024(H) X 600(V)Dot
Color SystemPAL/NTSC (AUTO)
Brightness (Cd/M2)600
Load DumpISO16750-2 Standard(24V System Us=174V,Ri= 4Ω,Td=350ms)
Anti-Vibration Grade5G ( Meets GB-T2423056-2006 Standard)
Operating Temperature-20℃ To +70℃
Storage Temperature-30℃ To +80℃
Free Operating VoltageDC8-32V
Outer Size(L X W X T) (218 X 150 X 54mm)

AI HD Wireless Magnetic Battery Operated Portable Backup Camera (CWHD-362M-AI)

Image Sensor1/2.9 Color CMOS
Wireless TransmissionBuil-In 2.4G Digital Wireless Transmitter
Transmission Power18dBm
Transmission DistanceUp to 200m Clear Line of Sight
Resolution720P
Effective Pixels1280(H) X 960(V)
Visible Angle130°
Infrared Distance5 Meters
Housing MaterialAluminum Alloy
Waterproof GradeIP69K
Cell TypeLithium Polymers Battery
Product Capacity8000maH(3.7v) 29.6Wh
Interface InputType-C Waterproof Interface(With QC2.0 Fast-Charging Agreement)12V/1.5A
Electricity ScreenFast-Charging Indicating Light And 25%-50%-75%-100% Electricity Indicating Light
Battery SwitchTouch-Switch
Charging Circular Temperature0℃~+40℃
Charging And Discharging Times>800 Times
Discharging TimeAbout 20 Hours
Installment WayInstall With The Silica Gel Magnetic-Suction Base.
Operating Temperature-10℃ To +60℃
Storage Temperature-20℃ To +70℃
Anti-Vibration GradeGB∕T 2423.56-2018 Standard(Random 5G Vibration)

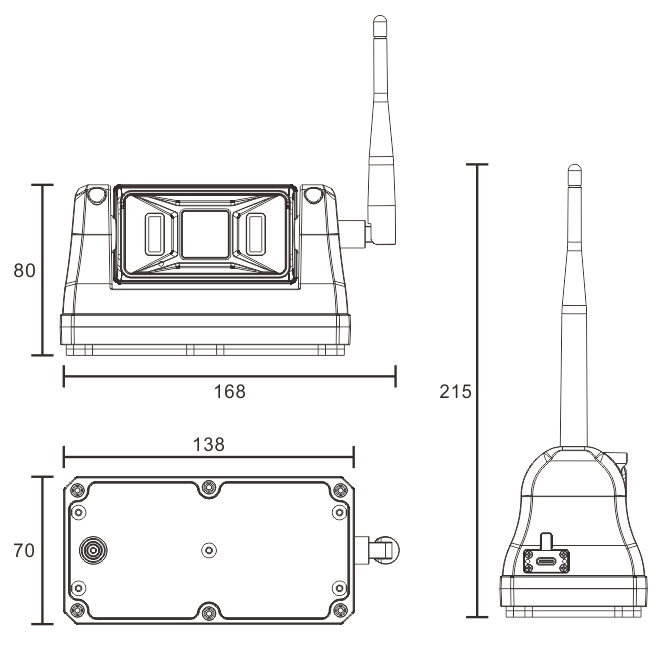

Outer Size138(W) X 80(H) X 70(D) Mm(Without Antenna)

Product Applications




*This product information is for reference only! If there is any change, the actual product shall prevail, the final interpretation right belongs to our company!
