Utilizes H.264 video compression technology, offering high compression ratio, making it convenient for transmitting high-definition images over narrow bandwidths.
Supports dual streams: Main stream: 2304*1296, 1920*1080; Sub stream: 704*576.
Supports variable bit rate and frame rate settings, allowing the video image quality to be set while also limiting the video image compression bit rate.
Supports day/night color and black/white switching with automatic ICR (Infrared Cut Remover) switching.
Supports motion detection, network fault detection, and other strategies, as well as alarm recording.
Supports remote monitoring via browser and mobile phone, with simple cloud service remote access operations.
Supports PPPoE, DHCP, TCP/IP, HTTP, UDP, RTP/RTCP, RTSP, UPNP, SMTP, FTP, SIP, DDNS, DNS protocols.
Embedded Web Server, supports video viewing, parameter configuration, upgrades, and user rights management via IE browser.
Supports ONVIF protocol.
Supports POE (Power Over Ethernet) power supply (customizable).
| Feature | Description |
|---|---|
| Image Sensor | 1/3" Progressive Scan CMOS |
| Resolution (Photo) | 3 megapixels (1920x1080P) |
| Video Scanning | Progressive scan |
| IR-Cut Filter | ICR (IR-CUT) dual filter |
| Angle | Horizontal angle: approximately 85°, Diagonal angle: approximately 110° |
| Minimum Illumination | Color: 0.05 lux @ F1.2, Black/white: 0 lux (infrared illumination) |
| Video Compression | H.264 @ 3.0 / MPEG-4 / MJPEG / JPEG |
| Video Streams | Main stream / Sub stream |
| Main Stream | 1920x1080 at 1-20 fps, 1280x720 at 1-30 fps |
| Sub Stream | 640x360 at 1-30 fps |
| Video Compression Rate | Adjustable from 128 Kbps to 8192 bps (continuous) |
| Network Functions | Screen menu display, channel name, data, video stream information display (adjustable position) |
| Storage Modes | Manual, automatic (loop, timed, alarm-triggered, motion detection) |
| Network Protocols | Supports RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP and other network protocols |
| Network Interface | 6-core aviation connector (or RJ45 network interface + DC connector) |
| Watermark Function | Overlay channel and date/time OSD watermark |
| Privacy Masking | Supported |
| Password Protection | Three-level password protection |
| FTP Protocol | Supported |
| RTSP Protocol | Supported |
| PC Browser Compatibility | Supports IE 6.0 and above (embedded web server), compatible with Firefox/Chrome/Safari (up to 10 concurrent users) |
| Mobile Platforms | Supports iPhone, Windows Mobile, BlackBerry, Symbian, Android |
| ONVIF Protocol | Complies with ONVIF standards, compatible with major NVR brands |
| Cloud Services | P2P one-click remote access, gateway penetration function |
| Power over Ethernet (PoE) | External PoE functionality can be added |

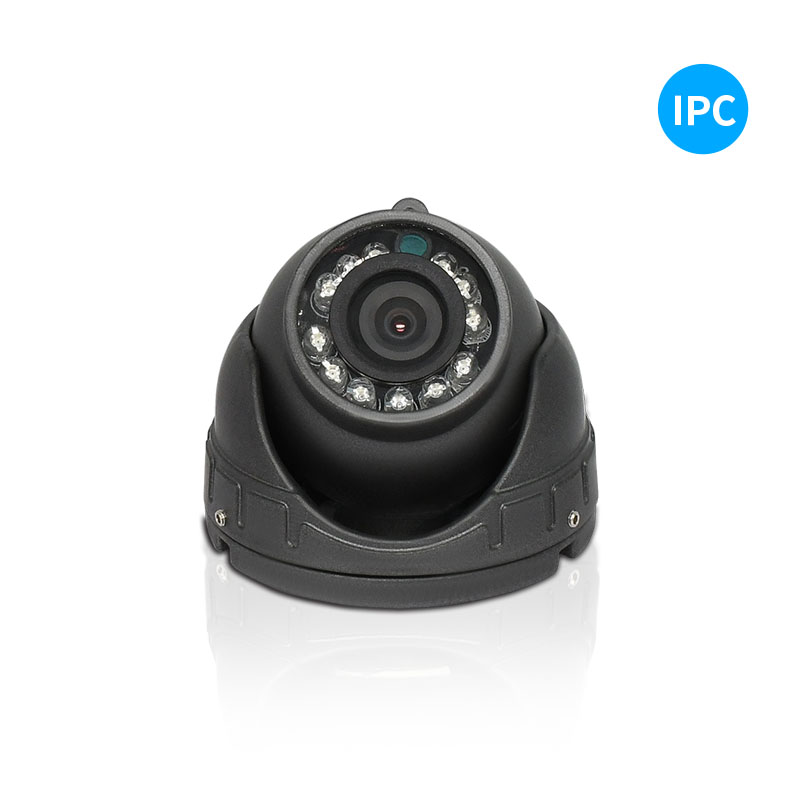

| Infrared Illumination | 12 infrared LEDs, effective range up to 10 meters |
| Operating Environment | Temperature: -20°C to +60°C, Humidity: 0% - 90% |
| Physical Specifications | Power: DC 12V (or PoE), Maximum power consumption: 15W |
| IP Rating | IP69K (dust-tight and water-resistant) |
| Dimensions | 69mm (width) x 58mm (height) |
*This product information is for reference only! If there is any change, the actual product shall prevail, the final interpretation right belongs to our company!
