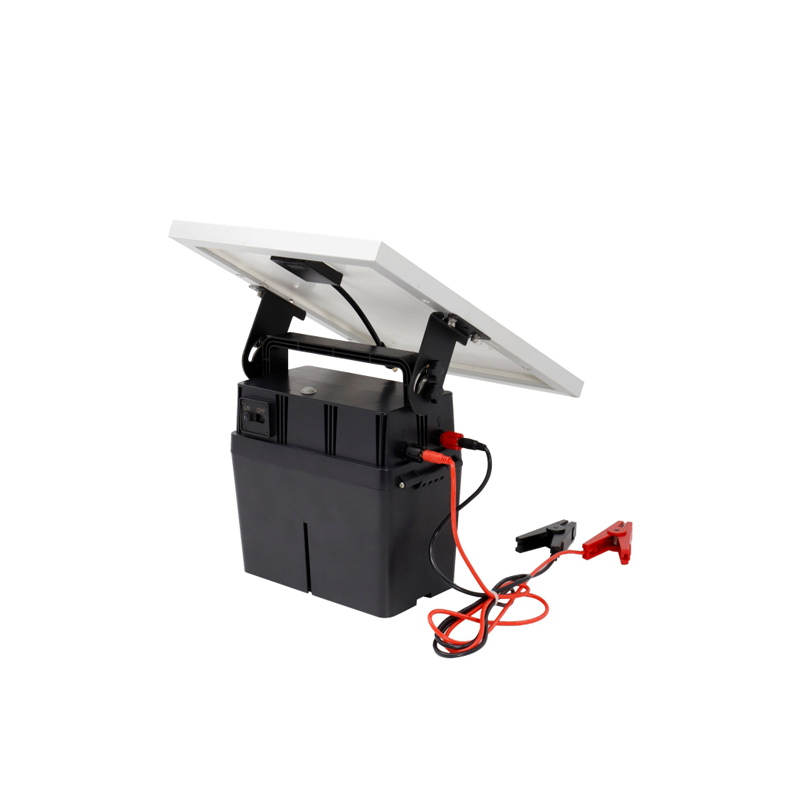

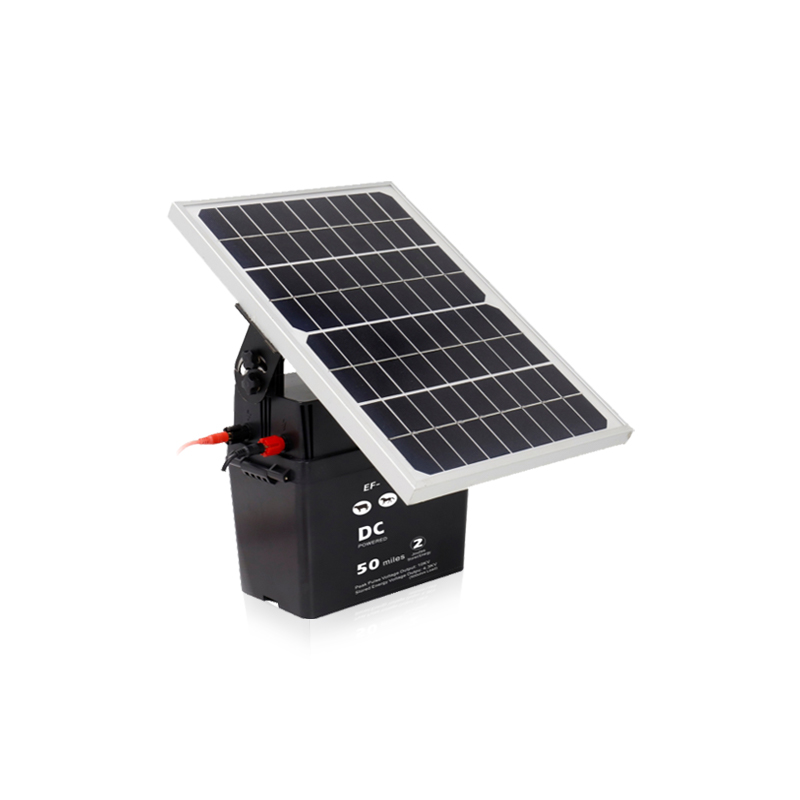

Solar Powered Electric Fence Energizer

  • Model : EF-B1S020
  • Summarize : The electric fence is a very convenient and economically efficient way of animal management. keeping your land safe from predators and pests, such as moles and even larger animals, or your livestock securely contained within their fields and pens, Previously, farms needed to set up tangible fences made of wood or chains to prevent animals from escaping. However, tangible fences require more input of manpower and material resources and are also easily damaged by animals. Now, by using the electric fence host to send pulse low-current and high-voltage electric shocks to the animals to deter them from reflecting and no longer approaching,it is possible to better and efficiently manage the animals. The battery of the solar electronic fence equipment can be charged by the solar panel, not require an external power supply and is widely used in large-scale cattle, sheep and horse herds captive breeding in pastures iremote areas where power cannot be used for livestock captive breeding an crop protection to wild animal intrusion.so that it can be used normally in remote.
  • More Info : Online Service

Product Features

Solar Powered Electric Fence Energizer with Built-in Battery Farm Fence Charger New Condition for Livestock and Farming Wild Animal Intrusion Revention

Portable integrated shell structure design,easy installation。
High-efficiency single-crystal solar panel charging speed fast and angle can be adjusted。

The voltage output (Vmp) of the high-efficiency single-crystal solar panel: DC18V.

The current output (Imp) of the high-efficiency single-crystal solar panel: 0.64A.

The output power (Pmax) of the high-efficiency single-crystal solar panel: 11W.

High-load energy storage output: 2 joules @ 500Ω, peak value stored pulse voltage output: 10KV, load pulse voltage output: 4.3KV @ 500Ω, low impedance, high energy, and long transmission distance (without vegetation: up to 50 kilometers for multi-wire connection).

IP68 Waterproof Grade and lightning protection design for outdoor use.

50mA low power consumption and energy saving, with a full charge usage cycle of up to about 8 days.

Magnetic induction power switch: on/off.

Pulse voltage output indicator light: red.

Charging indicator light: green.

Battery fully charged indicator light: blue.

Battery space size:150(L)*65(W)*95(D)(mm)Optional

Product Parameters

Modelstorage power outputpeak pulse voltageload pulse voltagemaximum poweroperating timemulti-wire distance(mile)
range(acre)
EF-B1S0202 Joulesup to 10KV4.3KV@500ΩMax 50mAup to 8up to 50up to 165
EF-B1S0121.2 Joulesup to 10KV3.7KV@500ΩMax 35mAup to 11up to 25up to 80
EF-B1S0070.7 Joulesup to 10KV3.5KV@500ΩMax 30mAup to 12up to 15up to 60


Product Applications

Veise EF-B1S020 Solar Fence Charger
Solar Fence Charger is a little more expensive than standard options in exchange for better power conservation capabilities. It also comes with more customization in terms of use and setup that may justify the price tag. This is a good option for fences that might see a little more micromanagement than others.
Joule Output
With 2.0 joule output
With a single strand of fencing, it can support up to 25 miles.
Animals Being Contained
The EF-B1S020 itself a niche at keeping larger predators out that these devices may struggle with over a larger area.It will easily struggle to contain bulls or cows,
Warranty
Two-year warranty on the device and battery.
Installation
This solar-powered fence charger can be mounted on a half-inch steel rod. Allowing the fencing to remain entirely untouched by the device.
its solar panel can be rotated 360 degrees to capture the most sunlight possible wherever it's placed.

Product Accessories

Standard calculation of the number of electronic fence accessories


Accessory NameiconApplicationStandard quantity ordereddosage/kmdosage/2km
1Electronic fence hostGenerate high-voltage and low-energy pulse voltages, and determine whether the alarm is in place or not.Generally determined by customer requirements and number of defense zones.1
2Z-type fixed bracketFor fixing the electronic fence mainframe to the stake.Z-fixed bracket = number of zones1
3Cable connectorProtects the electronic fence mainframe from lightning strikes.Number of lightning arresters = number of defense zones1
4L-type fixed bracketUsed to secure surge arresters to stakesL-fixed bracket = number of zones1
5Terminal (pole) stake

Provides tension support for electronic cables, customer supplied.

Wooden stakes (2 meters) or poured concrete are recommended.

One should be used at the beginning and end of the electronic fence, as well as at every right angle and acute angle, and two should be used where the drop is greater than 0.5 meters.50100
6Terminal InsulatorsFor insulated alloy wires and force postsNumber of Terminal Post Insulators = Number of Terminal Posts * Alloy Wire System200400
7Terminal Insulator Fixing ClipUsed to attach a stressed post insulator to a stressed post.Terminal Post Insulator Fixing Clip = Number of Terminal Posts * Alloy Wire System200400
8load-bearing (pole) piles

Ensure the strength of the electronic fence when used over long distances.Use one at every 15 meters in a straight line and at every obtuse angle, and two at any drop of less than 0.5 meters.
0
9Load-bearing (pole) pile insulatorsFor insulated alloy wires and load-bearing postsNumber of bearing post insulators = Number of bearing posts * Alloy wire system
0
10Self-tapping insulators for load-bearing (pole) pilesFor insulated alloy wires and load-bearing postsNumber of bearing post insulators = Number of bearing posts * Alloy wire system
0
11Center piles

Maintain standard spacing between supporting electronic cables to avoid two adjacent wires touching.The general requirement is not more than 5 meters to use 1, (the quantity is calculated according to the standard 5 meters 1), the number of intermediate columns = perimeter length / intermediate column spacing - the number of stressed columns - the number of bearing columns.100200
12Intermediate (pole) pile insulatorsFor insulating alloy wires and intermediate postsNumber of intermediate pole insulators = number of intermediate poles * alloy wire system400800
13Cable tiesUsed for tensioning electronic fence alloy wiresNumber of tighteners = perimeter length/50 meters * electronic fence alloy wire wire system.80160
14wired connectorSplices for connecting alloy wiresNumber of wire connectors = Number of terminal posts * Alloy wire gauge * 2160320
15Alloy wire High strength single strand aluminum alloy wire Φ2mmCarrying high voltage pulsesNumber of alloy wires = perimeter length * alloy wire system * 1.0542008400
16High Voltage Insulated Wire 20kV Silicone WireUsed to connect the electronic fence mainframe and the front end of the electronic fence

Quantity of high-voltage insulated wires = Number of defense zones × Distance between the main body of the electronic fence and the alloy wire at the topmost end of the electronic fence * Alloy wire system.

(Number of standard programs = number of defense zones * 30 meters)

3060
17Fence Warning Sign 200×100 Double SidedWarning and informing role.Number of warning signs = perimeter length/50 meters.2040
18Grounded galvanized pipeFor electronic fence host grounding and lightning arrester grounding.Number of grounding stakes = Number of defense zones * 336
19BV102 copper core cableUsed for electronic fence host grounding and lightning arrester ground connection.Depending on the height of the main unit6
20li-ion battery

Provide power supply

Length, width and height (unit mm): 150*65*95


Nominal Voltage:12.8V

Charging Voltage:14.6V 0.2V

Product weight:about 0.7KG

Maximum charging current:3A

Maximum Continuous Discharge Current:6A

Discharge cut-off voltage:10V

Product size:152x65x97(total height 104)mm

Terminal:F1

--

Installation Diagram
