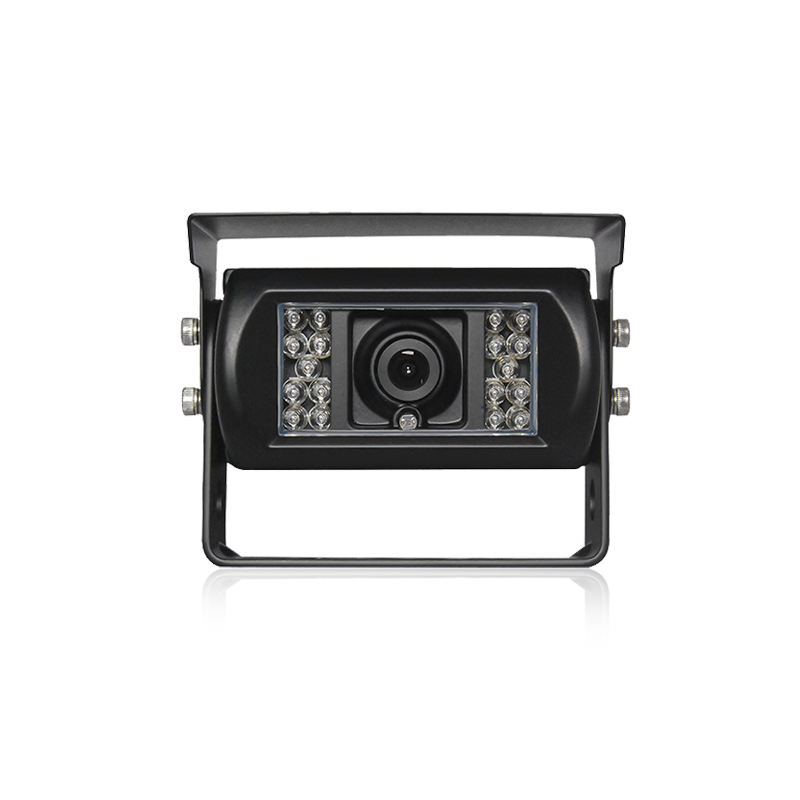

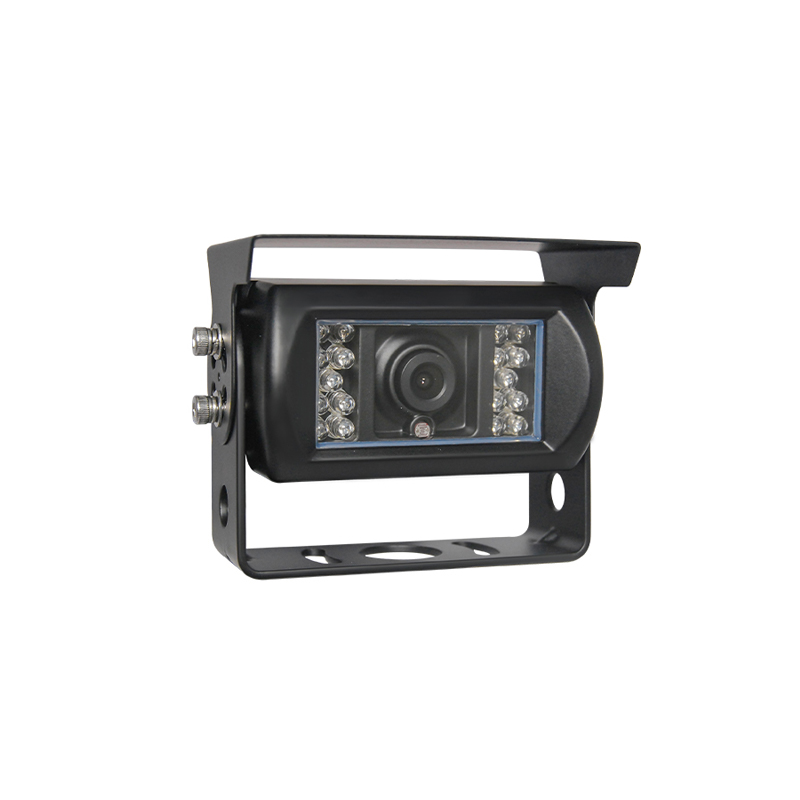

1080P HD Rear view Camera

  • Model : CHD-131Z/CHD-132Z
  • Summarize : The waterproof car camera has characteristics such as HD picture quality, night vision function, and waterproof and dustproof. It can provide high-resolution image quality, which can not only enhance the driving experience of the driver but also help them more accurately identify the road conditions and obstacles, to make safer driving decisions. It can work normally under adverse weather conditions, such as rainy days and snowy days. It is equipped with a night vision function to enhance the night shooting effect. This makes the camera still able to capture clear images in a dimly lit environment and provides sufficient visual information for the driver.
  • More Info : Online Service

Product Features

High-Definition Rear View Camera

1 Megapixel High-Definition

Heat-Dissipating Aluminum Alloy Housing

Nitrogen-Filled to Prevent Fogging, Waterproof IP69K (Patented Waterproof Testing Equipment)

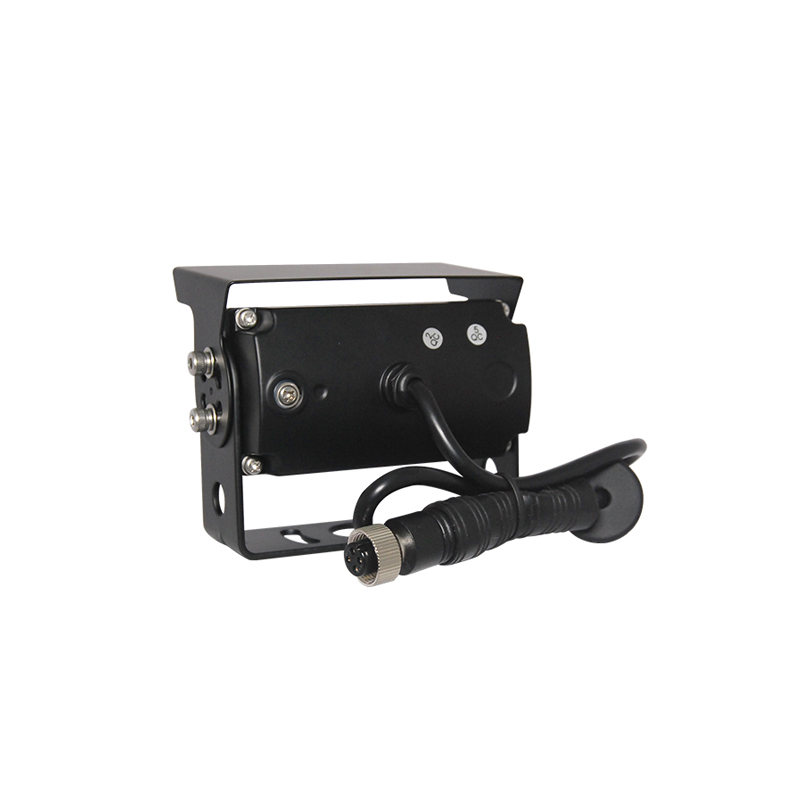

Cold-Resistant and Waterproof Tail Line to Adapt to Various Extreme Environments

Product Parameters

ModelCHD-131ZCHD-132Z
Effective Pixel1280(H) X 960(V)1920(H) X 1080(V)
horizontal definition720P1080P
visible angle130°
infrared distance15米 (18 built-in 850nm infrared lights)
signal-to-voice ratio≥48dB(AGC Off)
video outputAHD 720PAHD 1080P
Housing Materialaluminum alloy
Waterproof RatingIP69K
Working VoltageDC 12V±10%
Working Temperature- 20°C~+60°C RH95%Max
Storage Temperature- 30°C~+70°C RH95%Max
Anti-vibration Rate5G (meets GB-T2423056-2006 standard)
Body Interface4-core avionics female head

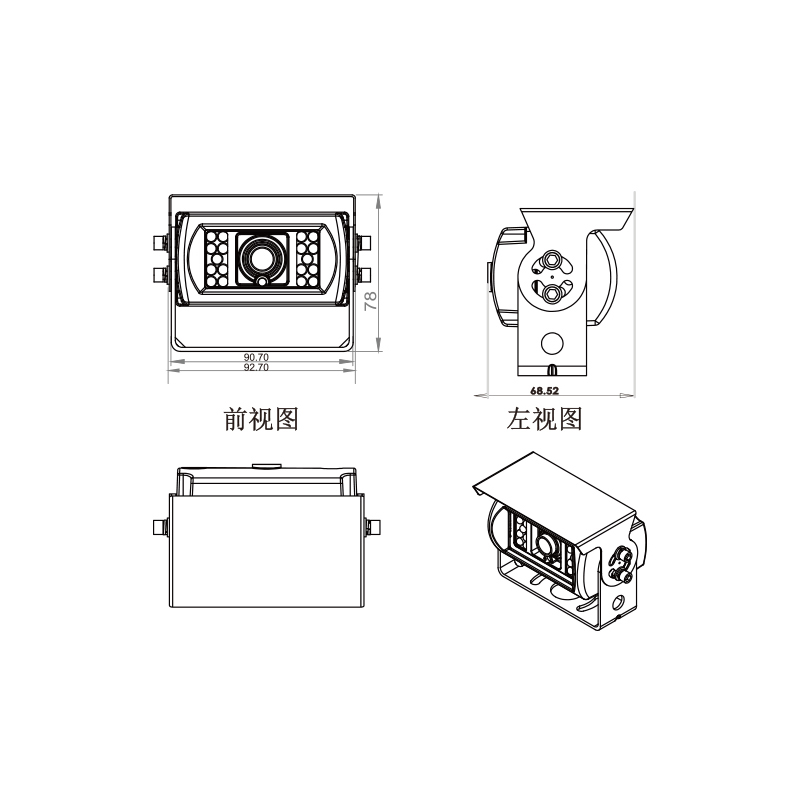

Size108(W) x 78(H) x 75(D) mm

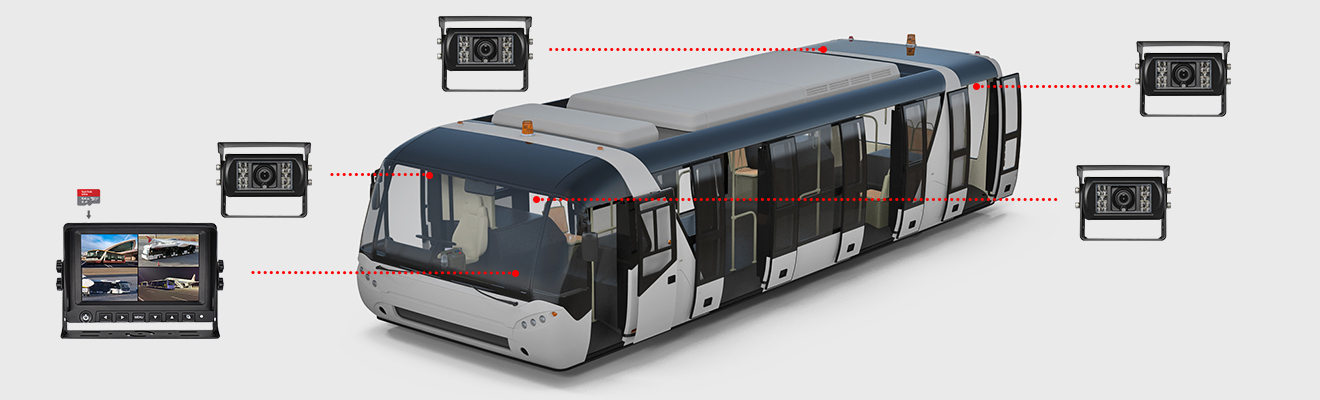

Product Applications

*This product information is for reference only! If there is any change, the actual product shall prevail, the final interpretation right belongs to our company!
