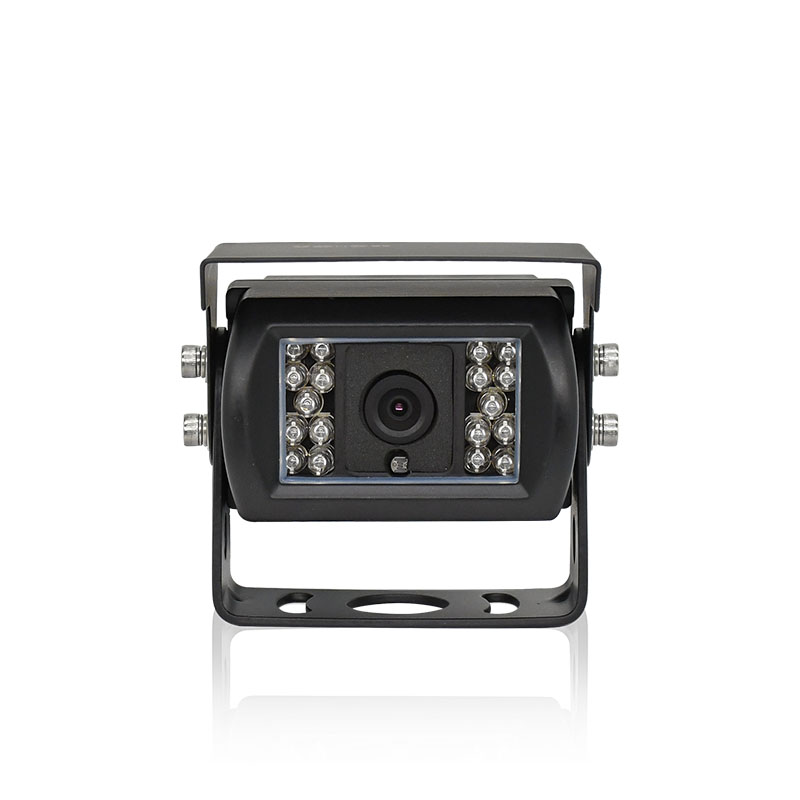

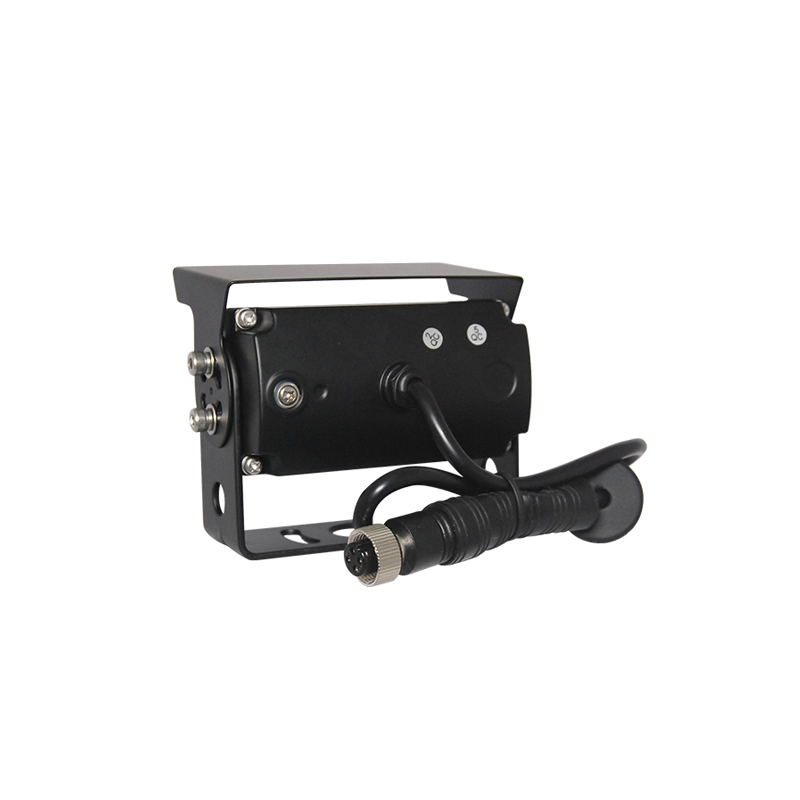

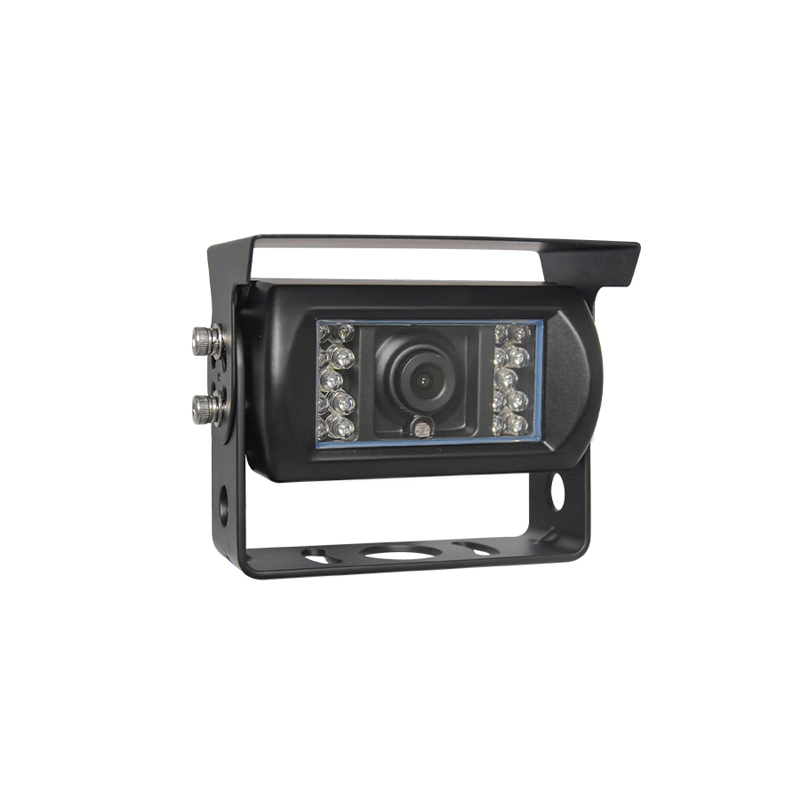

HD Reverse Camera

  • Model : CHD-101Z/CHD-102Z
  • Summarize : The waterproof car camera has the characteristics such as HD image quality, night vision function and waterproof and dustproof function. Being able to provide high-resolution image quality not only enhances the driver's driving experience, but also helps them more accurately identify road conditions and obstacles, making safer driving decisions. It can work normally under harsh weather conditions, such as rainy days and snowy days. It is equipped with night vision function to enhance the shooting effect at might. This allows the camera to still capture clear images in dimly light, providing drivers with sufficient visual information.
  • More Info : Online Service

Product Features

HD Backup Camera

2 million HD pixels

Heat dissipation aluminum alloy chassis

Nitrogen filled anti-fogging, waterproof IP69K (patented waterproof testing equipment)

Cold-resistant waterproof tail line adapts to various extreme environments

Product Parameters

ModelCHD-101ZCHD-102Z
Effective Pixel1280(H) X 960(V)1920(H) X 1080(V)
Horizontal Definition720P1080P
Visible Angle130°
Infrared Distance15 m (18 built-in 850nm infrared ligths）
Signal-to-noise Ratio≥48dB(AGC Off)
Video OutputAHD 1080P
Housing Materialaluminum alloy
Waterproof RatingIP69K
Working VotageDC 12V±10%
Working Temperature- 20°C~+60°C RH95%Max
Storage Temperature- 30°C~+70°C RH95%Max
Anti-vibration RateGB∕T 2423.56-2018 standard (random 5G vibration)
Interface Spec4 pin aviation female plug

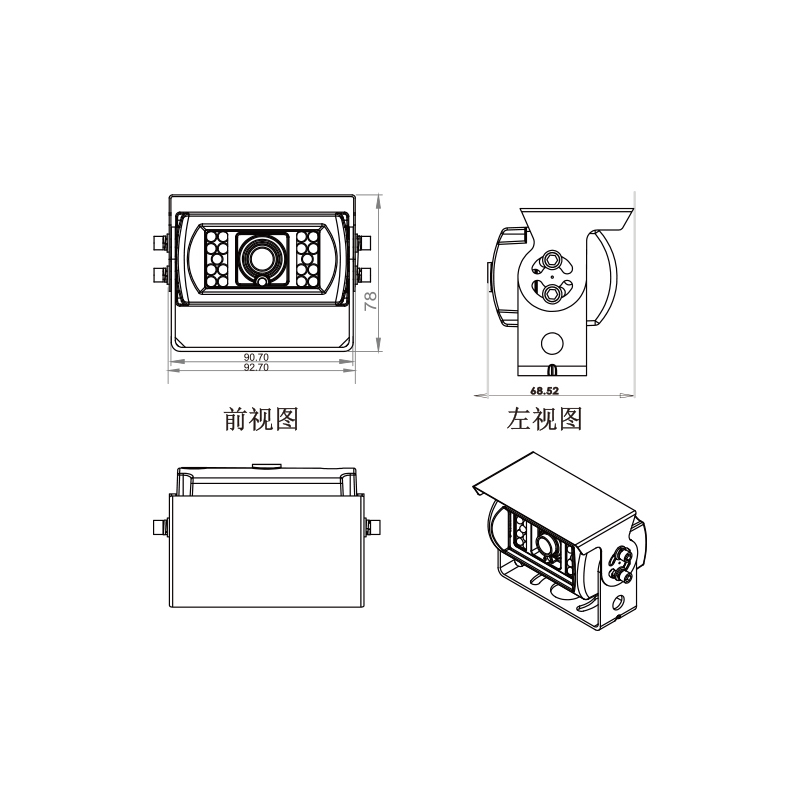

Size76(W) x 77(H) x 66(D) mm

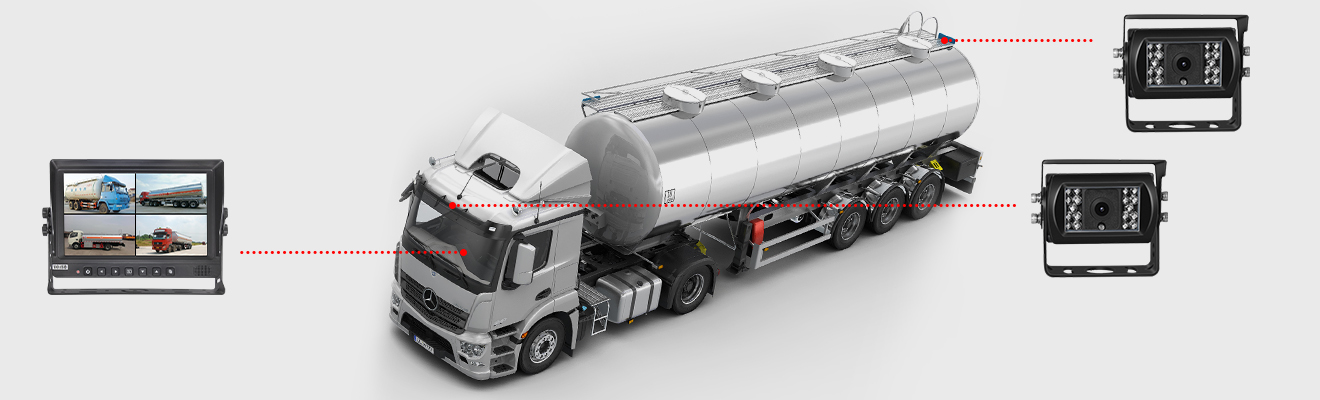

Product Applications

*This product information is for reference only! If there is any change, the actual product shall prevail, the final interpretation right belongs to our company!
