AI Pedestrian Vehicle Warning Rearview Camera System

  • Model : HDS-76119B2AI1
  • Summarize : Due to the need for high concentration while operating vehicle machinery, it is difficult for drivers to observe the in-car rearview monitor and, without the assistance of a reversing radar warning system, safety hazards and economic losses can easily occur. The AI pedestrian detection warning rearview system not only eliminates the complicated wiring and installation process of the reversing radar but also allows the AI human shape analysis camera to capture people in the monitored area in real-time, sending warning signals to the audio-visual alarm to alert both the driver and pedestrians. This enhances vehicle operation efficiency, eliminates safety hazards, and prevents economic losses.
  • More Info : Online Service

Product Features

HD Display

The 7-inch display supports dual video input and features automotive-grade industrial low-temperature resistant DSP, with an IPS display screen that offers true-to-life colors and fast response speed. The OSD menu allows for setting image mirroring and normal image, reversing image delay, and trigger priority application functions.

The display operates within a wide voltage range of DC8~32V, includes independent power output, load-dump pulse voltage protection, external power polarity reverse protection, and LED constant current and voltage protection to ensure proper usage and warranty compliance.

AI Human Shape Analysis Camera

The AI human shape analysis camera utilizes cloud-based intelligent recognition algorithms to learn and identify specific human body movements. It can accurately recognize humans in complex environments and is mainly used to monitor restricted areas for unauthorized entry or specific human body movements within a designated area. It sends warning signals to the relevant monitoring system.

The camera features a 100° ultra-wide angle, automotive-grade DSP, 2 million high-definition pixels, IP69K waterproof rating, and cold-resistant waterproof signal tail wire.

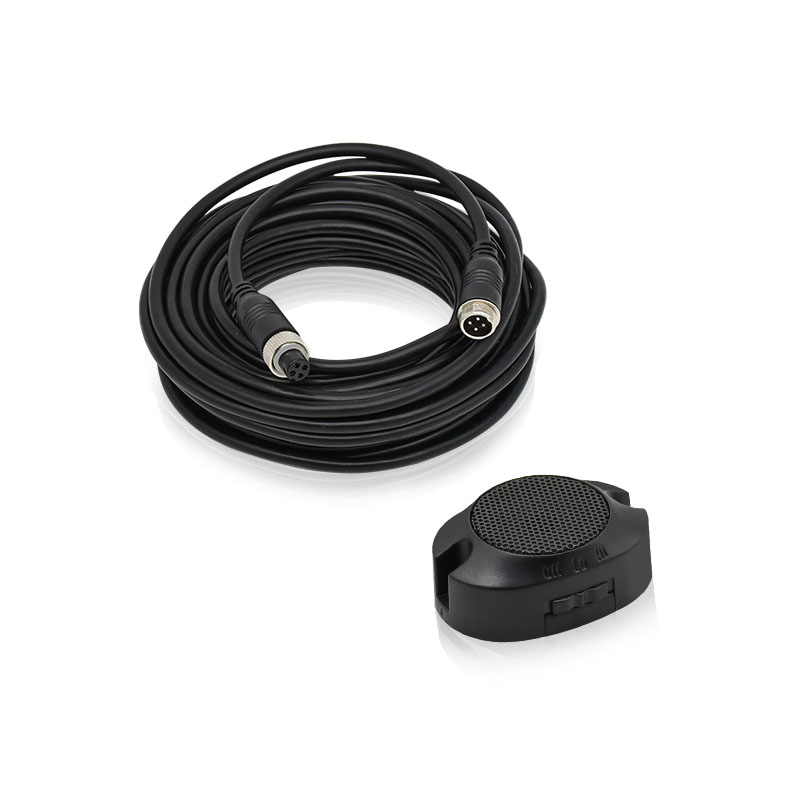

Connection Cable and Audio-Visual Alarm (External)

The 4-core phosphor bronze aviation head double-shielded connection cable provides good interference resistance, low impedance, and minimal signal transmission attenuation. The aviation head tail wire features double injection molding for excellent tensile, swing, and extension durability.

Product Parameters

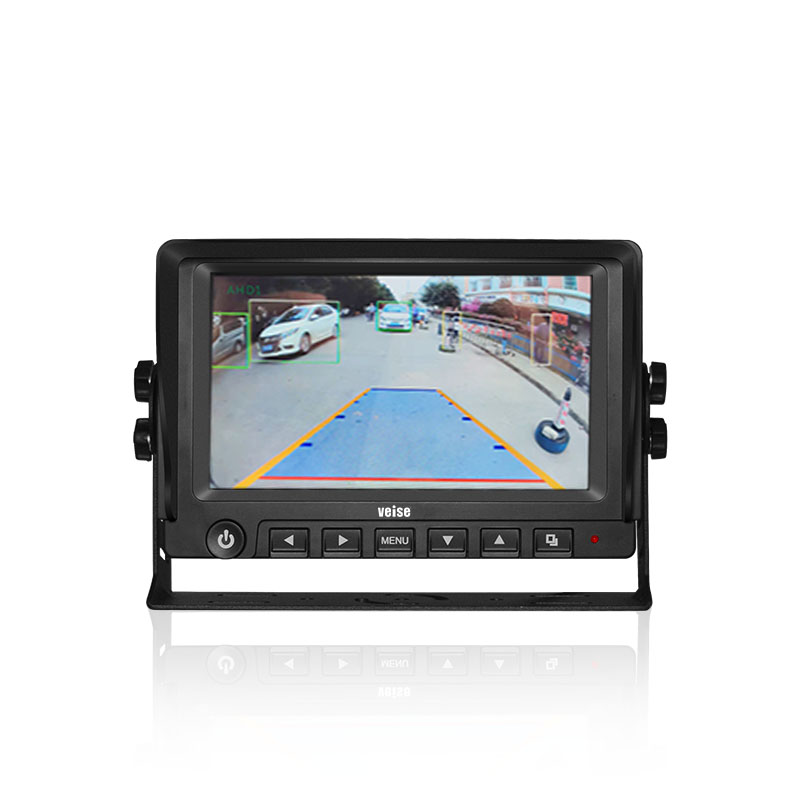

HD Camera Monitor(MHD-761)
Color Display Screen7-inch IPS screen
Resolution 1024RGB(H) X 600(V)dot
Video Input 2CH
Display ModeSingle screen display
Video Input CVBS /AHD720P /1080P
OSD MenuSeparate settings for mirror/non-mirror image, reverse delay time setting, trigger priority, multi-language
Brightness (cd/m2)600
Throw the load pulseISO16750-2 standard(24V system Us=174V,Ri=4Ω,td=350ms)
Connector Sockets2M cable
Working Temperature -20℃ to +70℃
Storage Temperature -30℃ to +80℃
Working Voltage DC11-32V
Vibration ratingGB∕T 2423.56-2018 standard (5G vibration Randomly)
Dimension(L x W x T) (218 x 149 x 82mm)

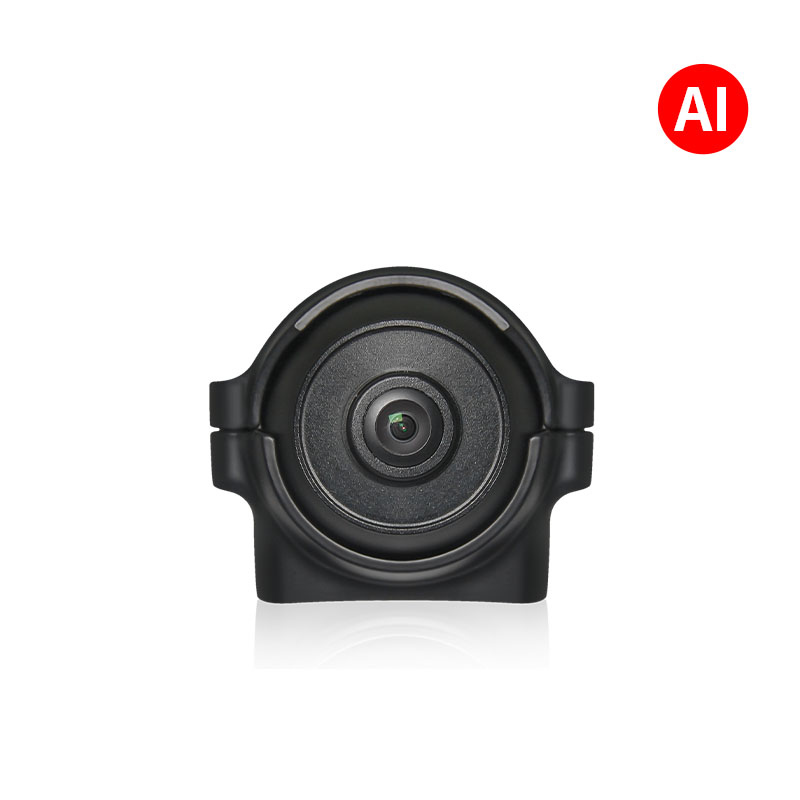

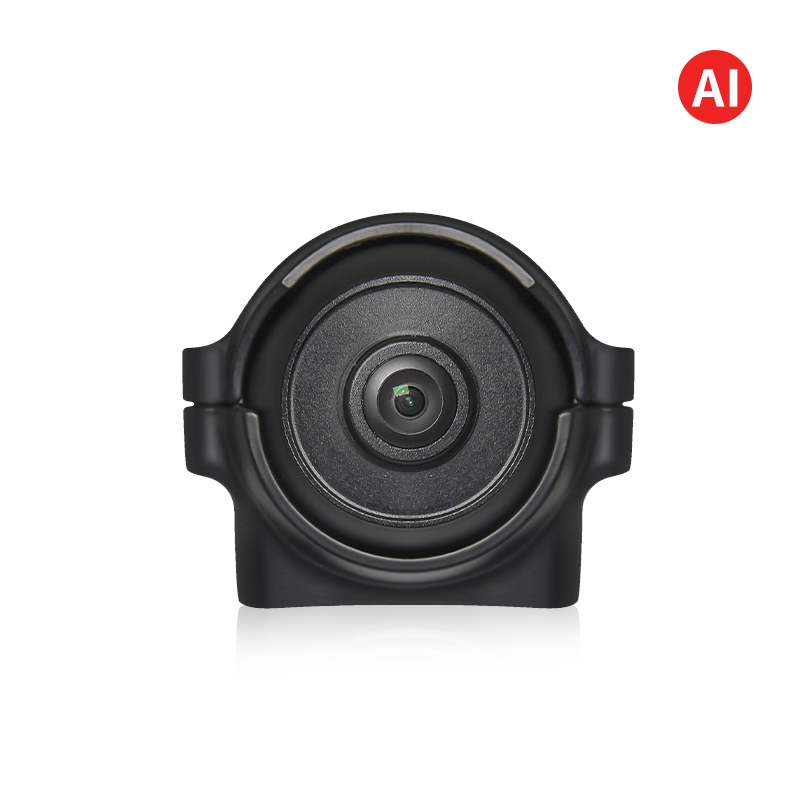

AI camera(CHD-19B2AI)
Image Sensor 1/2.9 Color Cmos
Effective Pixel1920(H) X 1080(V)
Definition 1080P
Visible Angle 130°
AI detectionEarly warning for Pedestrian/vehicle
Ararm I/OExternal Buzzer
Signal-to-noise ratio≥48dB(AGC Off)
Video OutputAHD 1080P
Housing MaterialAluminum alloy
Waterproof RatingIP69K
Working Voltage DC 12-24V±10%
Working Temperature - 20°C~+60°C RH95%Max
Storage Temperature - 30°C~+70°C RH95%Max
Vibration rating5G ( meet with the standard of GB-T2423056-2006)
Connector4pin aviation female connector
Dimension74(W) x 64(H) x 56(D) mm

Product Applications

*This product information is for reference only! If there is any change, the actual product shall prevail, the final interpretation right belongs to our company!
