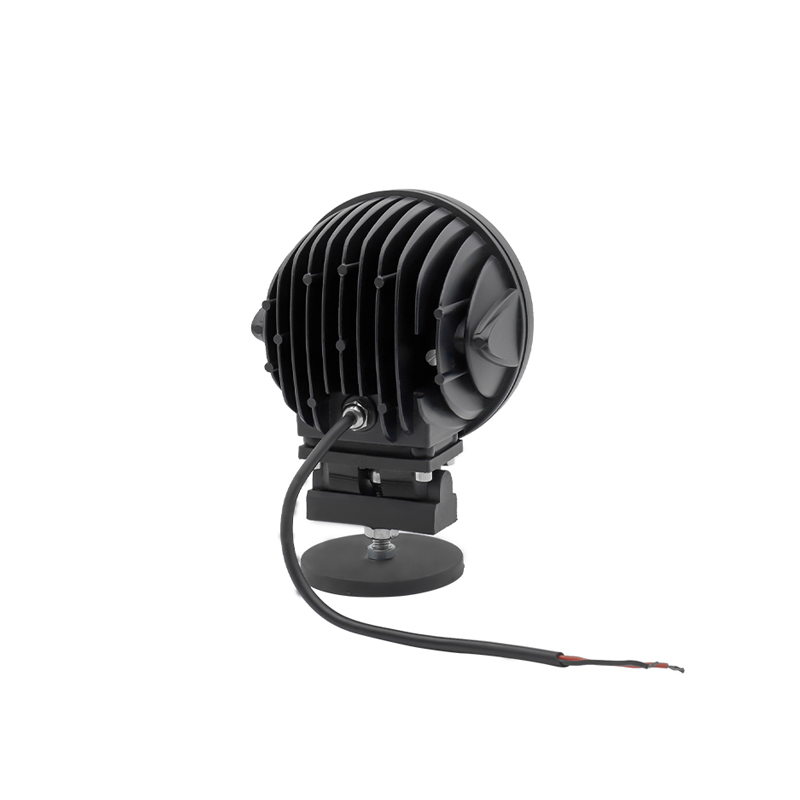

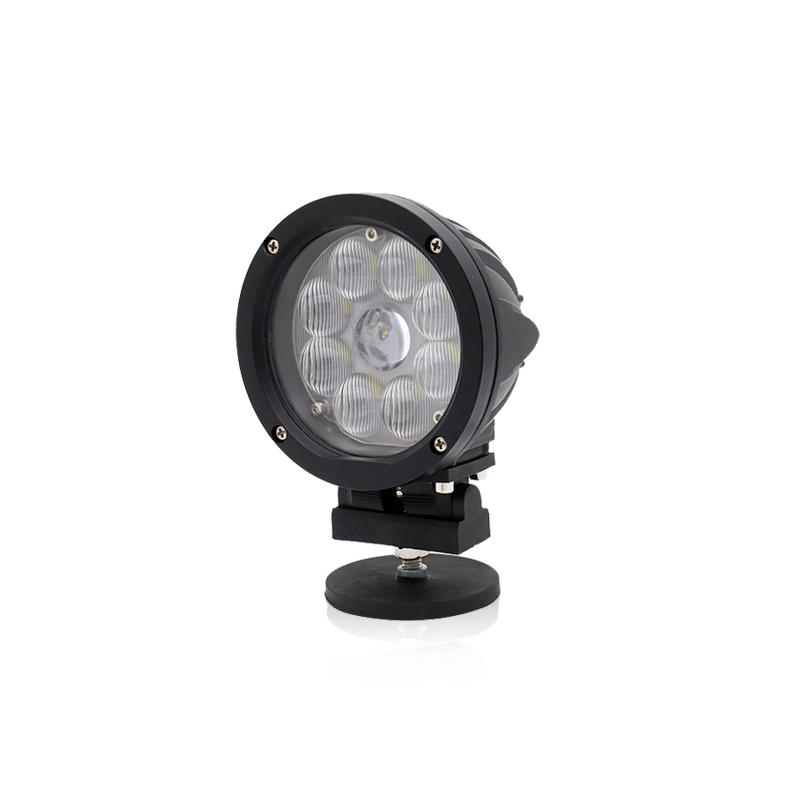

car operating light DF-L-B45A

  • Model : DF-L-B45A
  • Summarize : Vehicle-mounted working lighting lamps are mainly applied to mechanical equipment vehicles and are usually installed on night-operating tractors, emergency vehicles, engineering vehicles, ships, off-road vehicles, etc. In night-time operations and rescue missions, the vehicle-mounted working lamps provide strong light illumination, providing the necessary lighting for the site, so that the staff can carry out the work quickly and effectively, which greatly improves work efficiency and safety.
  • More Info : Online Service

Features

IP69K (high-pressure water gun cleaning) Waterproof Rating

The patented design of the waterproof pressure reducing valve maintains the balance of air inside and outside the product and ensures the reliability of the waterproof seal.

Fish scale die-cast aluminum alloy shell and 2.0 thickness LED aluminum substrate maximize heat dissipation design to ensure stable electrical performance

Highly transparent anti-glare Lens and impact-resistant PMMA acrylic Lens, external aluminum alloy protective cover to resist impact

Wide operating voltage range DC10-30V, built-in reverse polarity and load pulse voltage protection

Comply with international electromagnetic compatibility (EMC) certification

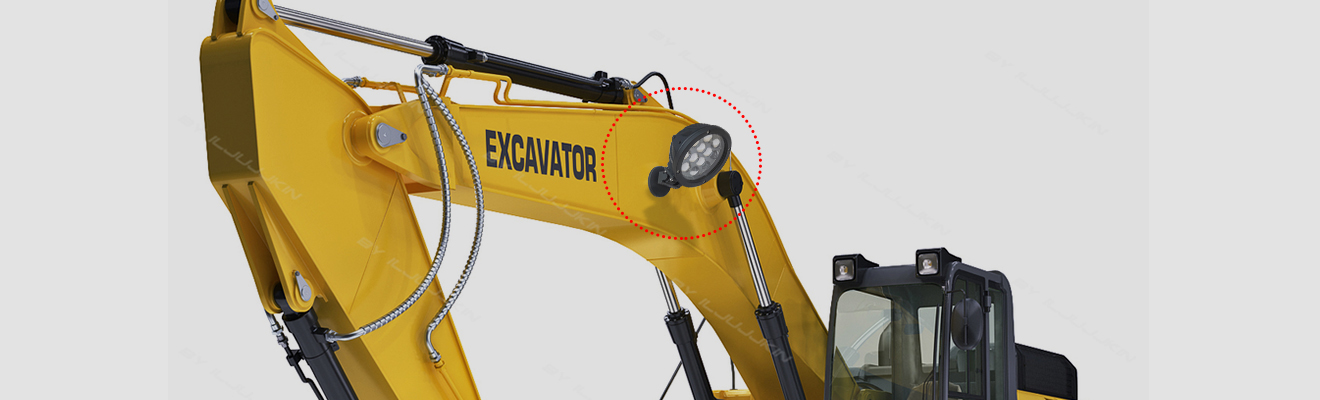

Widely used in outdoor lighting such as engineering vehicles, special vehicles, off-road vehicles, etc.

Parameters

Waterproof car LED auxiliary lightDF-L-B45A
power45W
Luminous flux1400lm
lamp beads9 pcs 5W high power lamp beads
Operating VoltageDC10~60V
Color Temperature6500K
Shell colorblack
Light typeHigh beam
MaterialDie-cast aluminum shell, reinforced PC mask, PMMA Lens, aluminum alloy adjustment bracket
Warranty time3 years
Operating Temperature-40℃~+60℃
waterproof levelIP69K
Shockproof level5G
Weight1500g

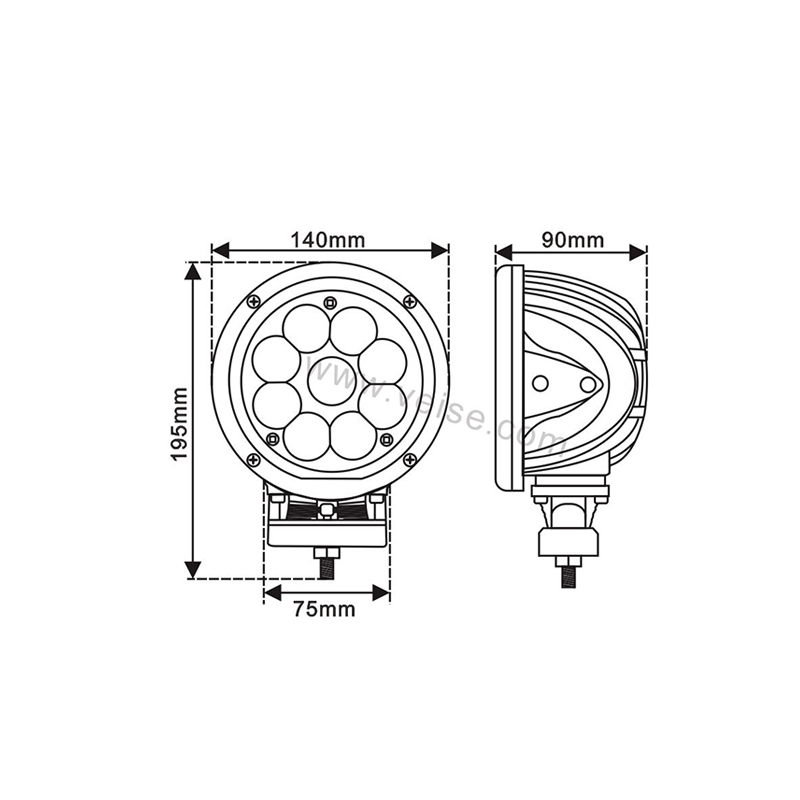

Size195X140X90(lengthXwidthXheight)

Applications
