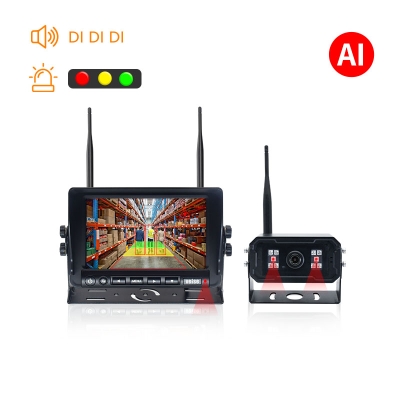

AI Backup Camera System with DVR and Blind Spot Audible and Visual Alarm

  • Model : HDS-7154MDJ122MAI
  • Summarize : Due to the highly concentrated thoughts by machinery equipment vehicles operators, they often do not have the time to monitoring the vehicle's backup monitor screen image. This is especially true in situations where no reverse radar warning system is installed. During vehicle operation, this can easily create safety hazards for personnel, leading to economic losses. The AI pedestrian detection warning rearview system not only eliminates the need for the complex wiring and installation of reverse radar,but also allows the AI human shape analysis camera to capture personnel in the monitoring area in real time, unlike ordinary cameras. It sends warning signals that trigger the built-in buzzer alarm and LED strobe light alerts on the monitor to remind the driver, thus enhancing vehicle operation efficiency, eliminating safety hazards, and preventing economic losses. The touch screen monitor supports real-time recording, playback, and safe distance display functions.
  • More Info : Online Service

AI Pedestrian & Vehicle Detecting and Warning Camera with DVR and Blind Spot Warning Information System

Dangers of Large Vehicle Blind Spots

Large vehicles such as trucks, freight trucks, and buses have significant blind spots. When these vehicles are driving at high speeds and encounter motorcyclists changing lanes or pedestrians suddenly appearing during turns, accidents can occur easily.

Pedestrian & Vehicle Detection

It can detect bicycle/electric bicycle riders, pedestrians, and vehicles. Users can activate or deactivate the pedestrian and vehicle detection alert function at any time.  (According to user preferences, the camera can be installed on the left, right, rear, or overhead position)

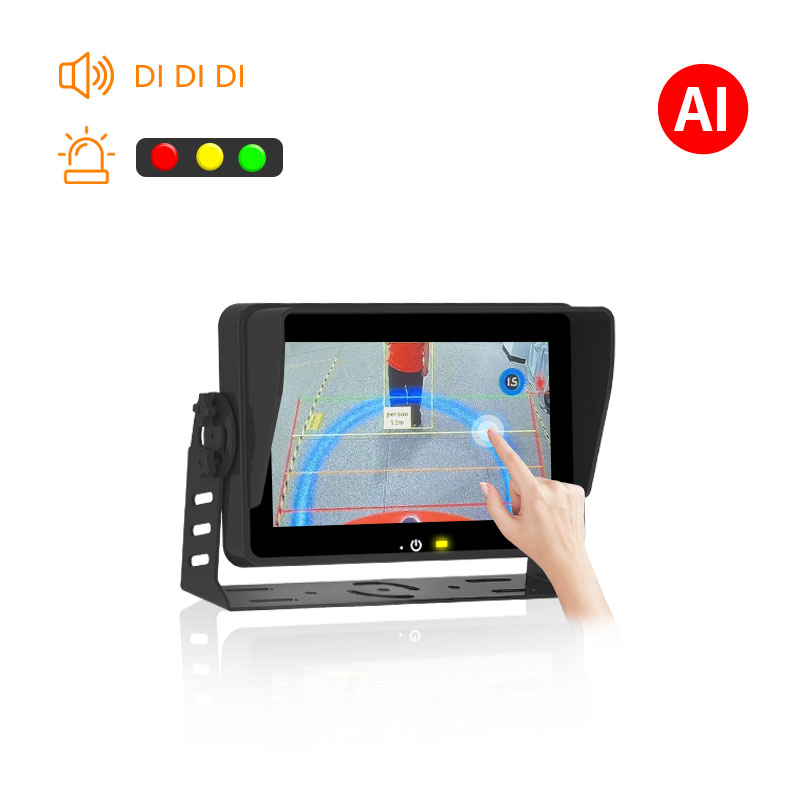

Blind Spot Audible And Visual Alarm Warning Driver

Due to the high concentration required by vehicle and machinery operators, they often do not have the time to constantly monitor the vehicle's rearview monitor image screen. AI pedestrian vehicle detecting and warning camera to capture personnel in the monitoring area in real time, It sends warning signals that trigger the built-in buzzer alarm and LED strobe light alerts on the monitor to remind the driver.

Wide Angle View

The cameras use a wide angle lens, achieving a horizontal angle of 140-150 degrees. This offers user a broader range for monitoring blind spots.

Product Features

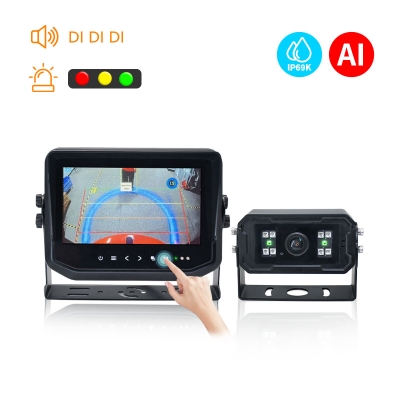

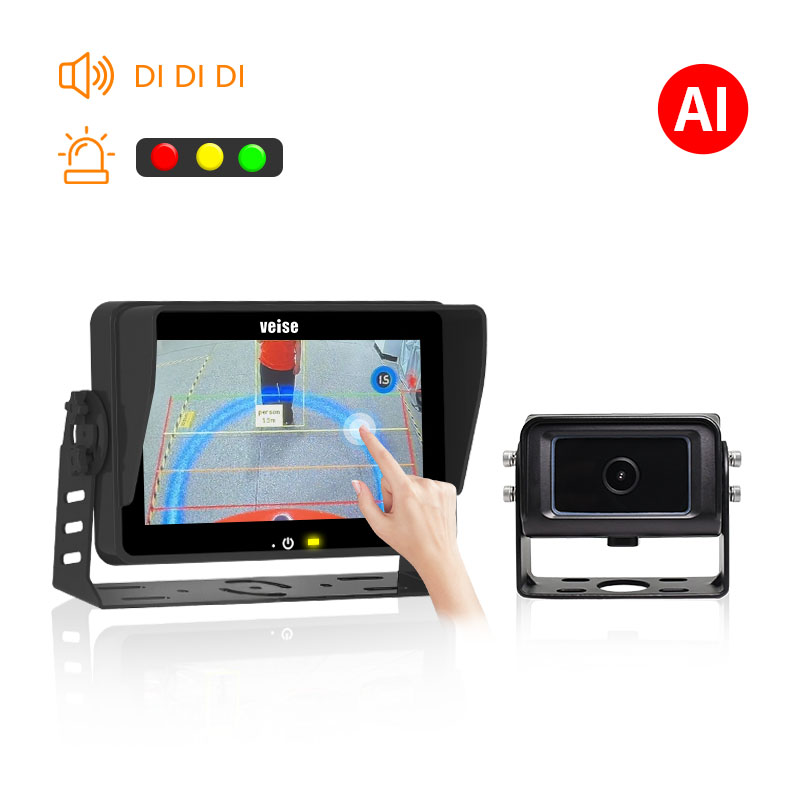

HD DVR Touch Screen Monitor

  • Display Screen: 7-inch IPS screen with fast response speed, wide viewing angles, true colors, graphical menu for easy and quick operation.

  • DVR: real-time recording and playback functionality, supports 16-512GB TF cards(Standard 64G)

  • AI warning : AI Camera sends warning signals that trigger monitor built-in buzzer alarm and LED strobe light alerts on the monitor to remind the driver for safety alerts. ,

  • Video input: supports up to 6 video inputs and has real-time recording and playback functionality.

  • Full bonding process for screen: the protective glass panel, touch screen and display screen of the monitor adopt a space free fully bonded process structure,Eliminate specular reflection to ensure clear and transparent image.

  • Protection circuit design: free operates voltage input DC 8-32V. pulse voltage protection against load disconnection,reverse polarity protection for external power, and LED constant current and voltage protection to prevent misuse and ensure longevity.

Product Parameters

System Model

HDS-7154MDJ122MAI1-64G

HDS-7154MJ122MAI1

HD Monitor MHD-7154MDJ-64GMHD-7154MJ
Display Size7-inch IPS Screen with Touch Screen
Resolution1024 x 600 pixels (RGB)
Video Inputs4 channels CVBS/AHD720P/1080P
Screen Modes1/2/3/4-screen split
CAM 1 AI Alarm I/O  InputRed (danger), yellow (reminder), Green (safe)
OSD Menu FunctionsMirror/normal settings, reverse delay time, trigger priority, multi-language support
Color FormatPAL/NTSC (AUTO)
Brightness 600 (cd/㎡) Automatically adjusts based on ambient light
Contrast Ratio800:1
Video Recording Function

Real-time recording

(2GB per hour per channel)

/
Video File FormatAVI/
Video Recording Capacity

Supports 16-512GB TF cards

(Standard 64G)

 /
Surge and Load ProtectionISO 16750-2 standard (24V system Us=174V,Ri=4Ω,td=350ms)
Connector Socket18-core waterproof interface
Operating Temperature-20°C to +70°C
Storage Temperature-30°C to +80°C
Operating VoltageDC 11-32V
Vibration ResistanceGB/T 2423.56-2018 standard (random 5G vibration)
Dimensions (L x W x T)210 x 143 x 84 mm
Weight800g

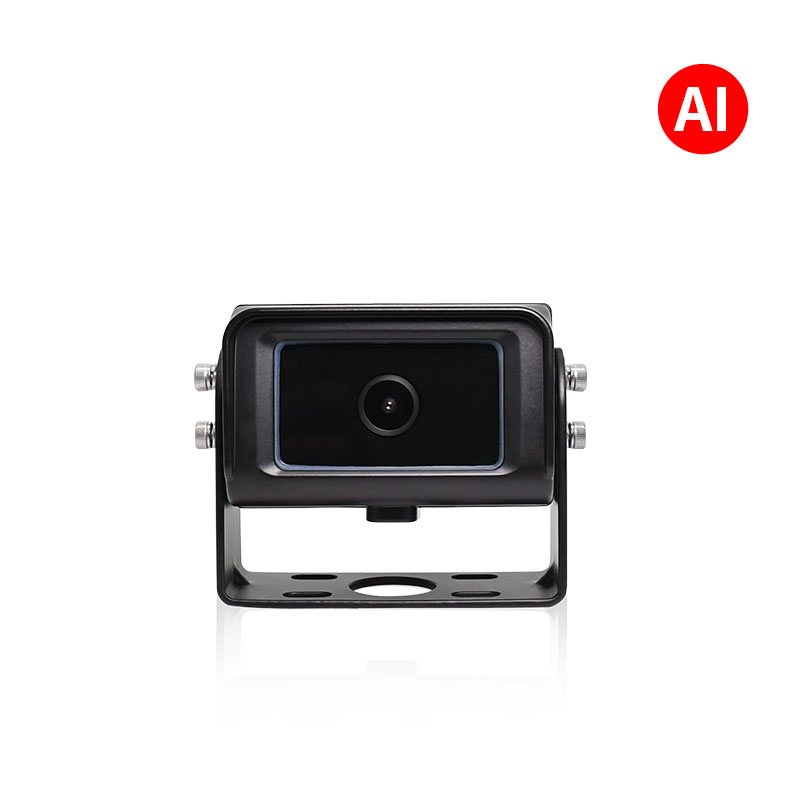

HD AI Pedestrian Detection Camera

HD AI Pedestrian Detection Camera adopts deep learning technology to detect pedestrians in front of the vehicle, on the side, and behind the vehicle in real time, so as to warn drivers of potential risks of collision with pedestrians, and improve the driving safety!

AI Camera (CHD-122MAI)

Image Sensor1/2.9 Color CMOS
Effective Pixels1920(H) x 1080(V)
Horizontal Resolution1080P
Field of View100°
AI Alarm I/O Output1-4 levels PWM
Detection TargetsPedestrians/non-motorized vehicles
Detection Image Ranging0-5 meters (customizable)
Signal-to-Noise Ratio≥48dB (AGC Off)
Video OutputAHD 1080P
Housing MaterialAluminum alloy
Waterproof RatingIP69K
Operating VoltageDC 12V ±10%
Operating Temperature-20°C to +60°C (RH95% Max)
Storage Temperature-30°C to +70°C (RH95% Max)
Vibration ResistanceGB∕T 2423.56-2018 standard (random 5G vibration)
Body Interface4-core aviation connector
Product Dimensions74(W) x 64(H) x 56(D) mm

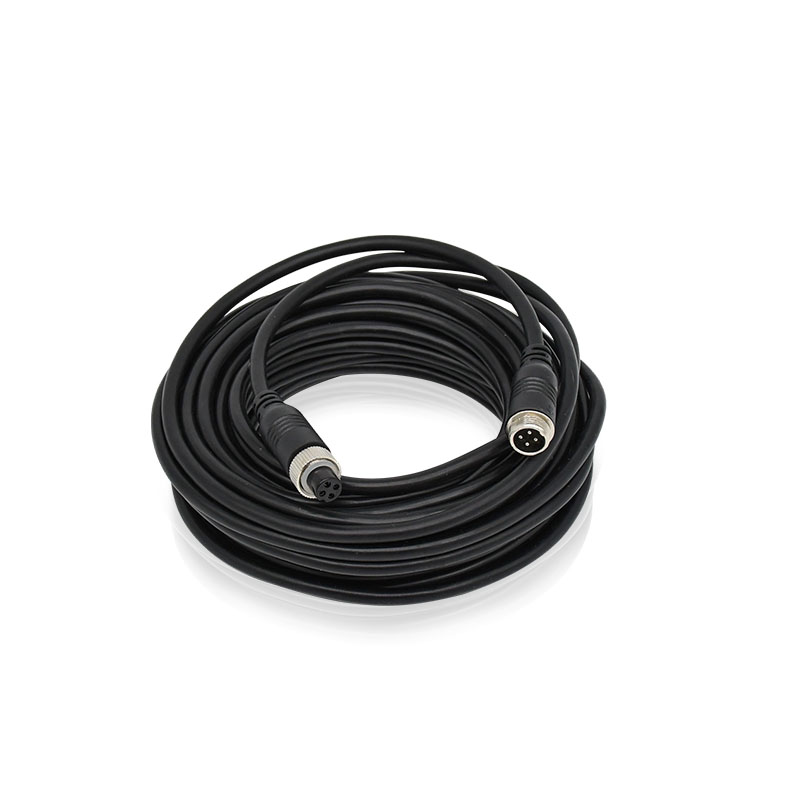

Video Power Connecting Cable

Material: 4-core phosphor bronze aviation plug with dual-shielded connection cable for good anti-interference.

Features: Low impedance, minimal signal transmission attenuation, double injection-molded aviation plug tail cable for excellent tensile and swing resistance.

Product Applications


*This product information is for reference only! If there is any change, the actual product shall prevail, the final interpretation right belongs to our company!
