Product Features

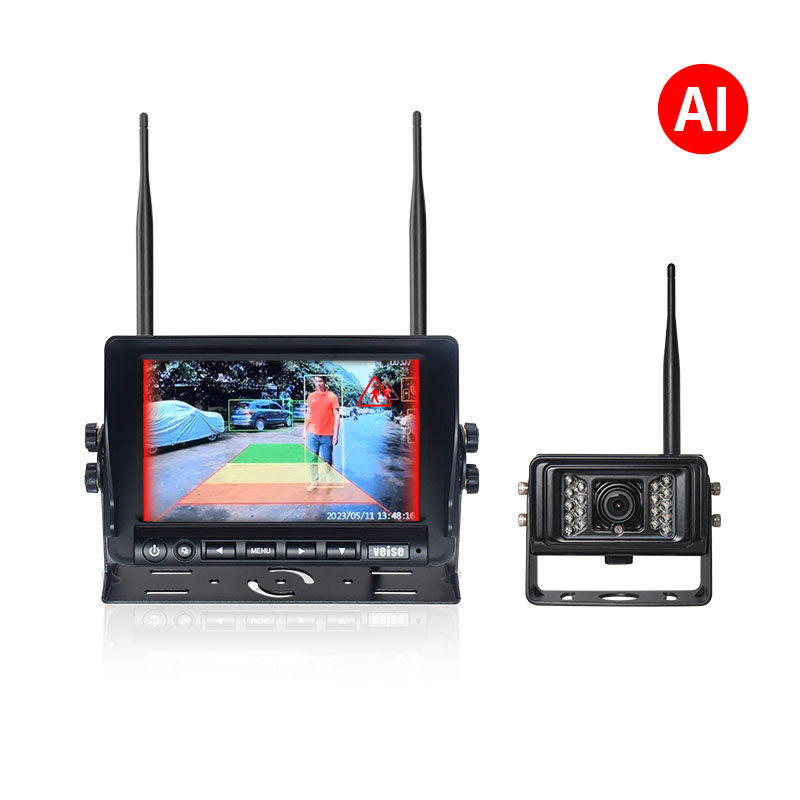

The AI HD wireless camera system automatically monitors pedestrians and vehicles for early warning, with Blind Spot Detection (BSD) functionality.
7-inch IPS wireless monitor with single-screen and 2-split screen options, customizable warning area settings (adjustable up/down, left/right).
Built-in warning microphone in the display, with a three-level alarm overlay, suitable for various application scenarios.
Multi-frequency hopping for automatic pairing, anti-interference, and a clear transmission range of 200 meters in open areas.
Monitor wirelessly controls wireless camera’s standby and operational power supply voltage (energy-saving mode).
AI human and vehicle recognition with 0.5T processing power, automatically recognize people and cars to display different logo、audible and visual alarm.
Wireless camera automotive-grade DSP, 1 million HD pixels, starlight full-color, IP69K waterproof rating, and all-weather operation.
Can be Used with a Power Supply Box
Product Parameters

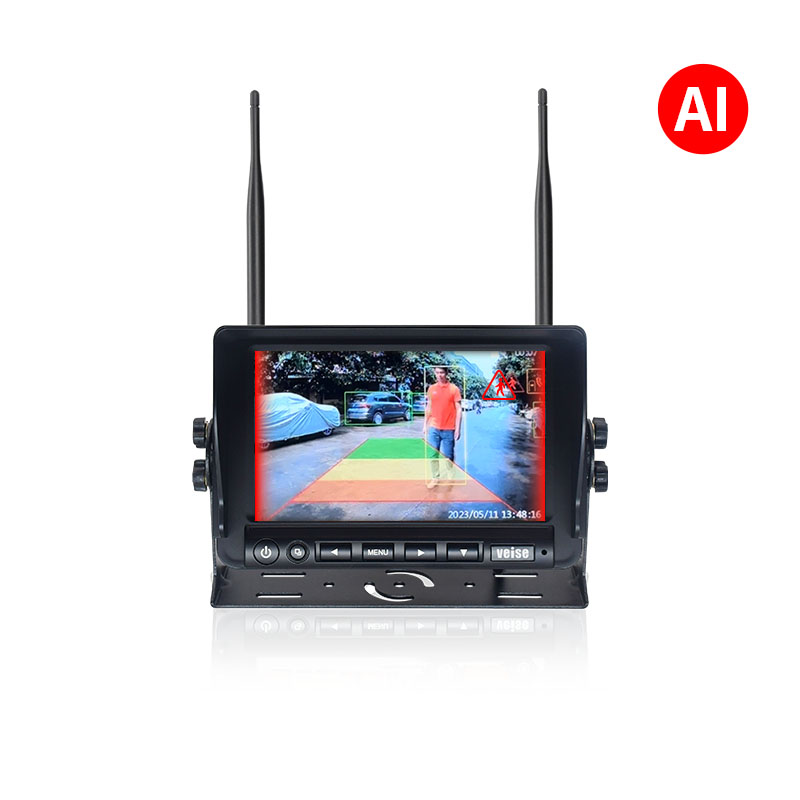

| Wireless Monitor Model | MWHD-772M-AI |
| Screen | 7-inch IPS HD screen, resolution: 1024xRGBx600 |
| Viewing Angle | L/R: 85°, U/D: 85° |
| Contrast Ratio | 800:1 |
| Brightness | 600 cd/m² |
| Operating Frequency | 2400 ~ 2483.5 MHz |
| OSD Menu Functions | Mirror/normal image settings, reverse delay settings, Trigger priority |
| Receiving Sensitivity | ≤ 86 dBm, Dual-wire signal reception, 200m open field transmission range |
| Wireless Video Input | Supports 2 CH 720P AI wireless video inputs |
| AI Warning | Display 3-level different audible、visual alarm and logo |
| Warning Settings | Customizable warning areas (up/down, left/right), AI human/vehicle recognition ON/OFF |
| Energy-saving Mode | Supports wirelessly auto controls the camera's power supply |
| Surge and Load Dump Protection | IS016750-2 standard (24V system Us=174V, Ri=4Ω, td=350ms) |
| Vibration Resistance | 5GB/T 2423.56-2018 standard (Random 5G vibration) |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +70°C |
| Input Power | DC 8-32V (5W Max) |
| Dimensions (W x H x D) | 220mm x 150mm x 85mm (excluding antenna) |
| Mounting Method | U-bracket mount |

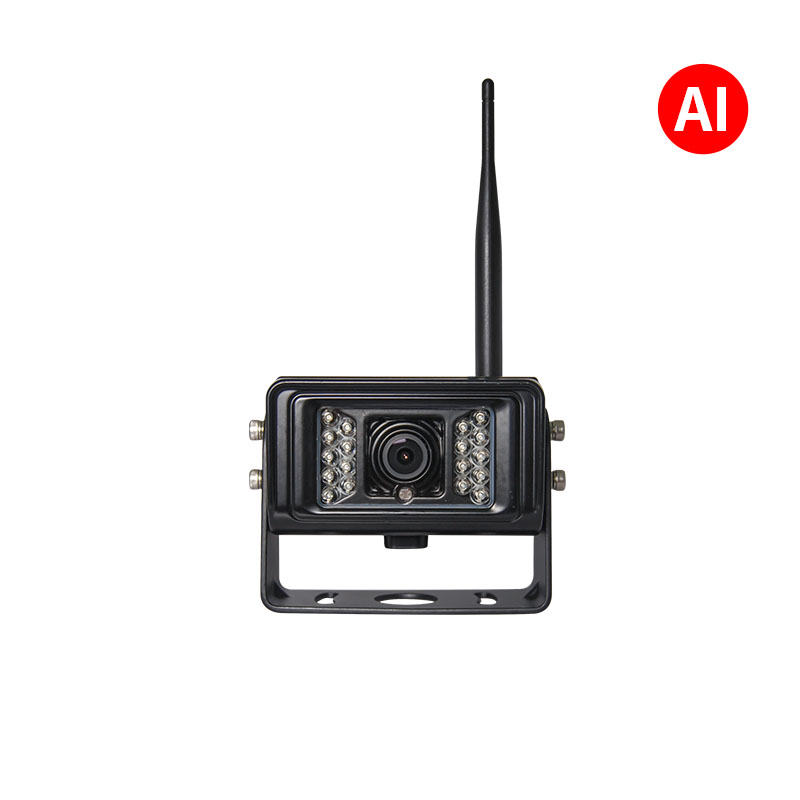

| Wireless Camera Model | CWHD-151MLP-AI |
| Sensor | 1/2.9 CMOS |
| Pixel | 1920(H) x 1080(V) |
| Resolution | 720P |
| Transmit Power | 18 dBm |
| Operating Frequency | 2400 ~ 2483.5 MHz |
| Transmission Distance | Up to 200m clear line of sight |
| AI Functions | Supports AI human and vehicle recognition with 0.5T computing power |
| Power Saving Function | Standby current as low as 1mA |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +70°C |
| Input Power | DC 8-32V (Max 3W) |
| Dimensions (W x H x D) | 91.6mm x 75mm x 71mm (excluding bracket and antenna) |
| Mounting Method | U-bracket mount |
Product Applications
*This product information is for reference only! If there is any change, the actual product shall prevail, the final interpretation right belongs to our company!
