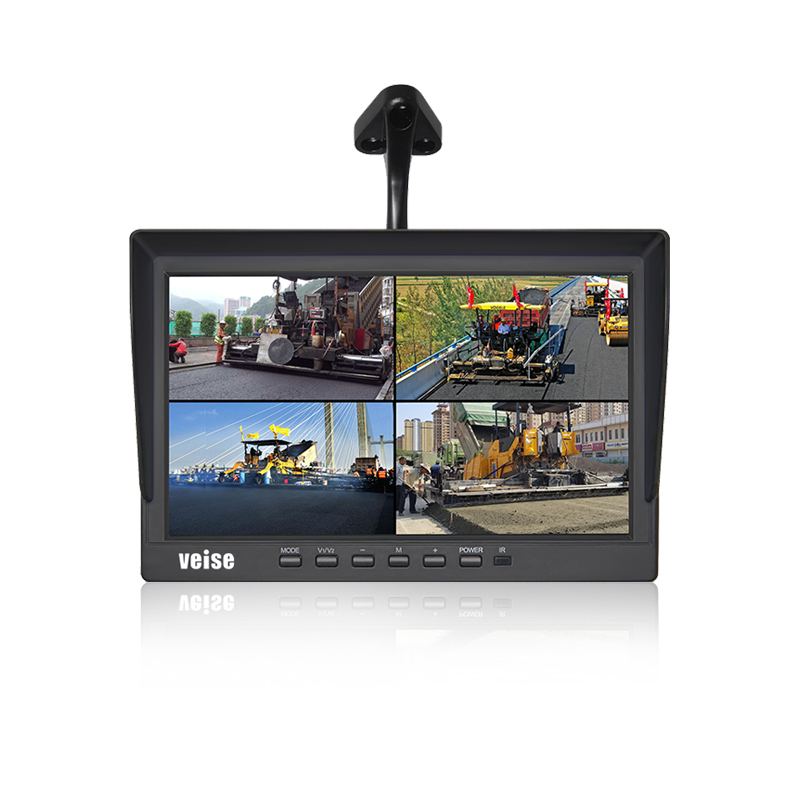

10-inch HD multi-picture monitor MHD-1024D

  • Model : MHD-1024D
  • Summarize : Through a 10.1-inch 4-split high-definition DVR monitor, drivers can observe the vehicle's operating status and changes in the surrounding environment more clearly, thereby gaining better control over the vehicle's operational conditions and enhancing construction efficiency. Additionally, the vehicle-mounted HD display offers advantages such as easy operation, high resolution, high brightness, high contrast, and wide viewing angles, meeting the needs of drivers in different scenarios to improve driving experience and vehicle operational efficiency. Moreover, its built-in storage function ensures complete preservation of surveillance videos for convenient playback and analysis later on.
  • More Info : Online Service

Product Features

10.1-inch HD IPS screen monitor supporting 4 channels of Video Input.

1024RGBX600 high Resolution.

Buit-in DVR and supports 512G TF storage card.

Automative-grade, -40°~85° digital video processor.

Supports 1080P/960P/720P/CVBS signal input.

Supports single picture, double pictures, three pictures, and four pictures multi-mode display.

OSD manu respectively sets the mirror and normal images of the picture, time delaying, and the double-trigger priority function.

Self-designed appearance patent, the outer shell uses ABS + PC Materials, and has the feature of high temperature resistance, etc.

600cd/㎡ high brightness of clear images.

Load dump pulse voltage DC24V + 174V (350ms) is designed to protect against damage of on-board transient pulses.

DC11~32V wide range Working Voltage.

Built-in external power supply polarity reverse connection protection, LED thermal response constant current constant voltage protection service life circuit design.

Product Parameters

ModelMHD-1024D
Color Display Screen10.1-invh IPS screen
Resolution1024RGB(H) X 600(V)dot
Video Input4 channels of Video Input
Display Modesingle pictures, double pictures, three pictures, and four pictures
Video Signal Input
CVBS /960P/AHD720P /1080P

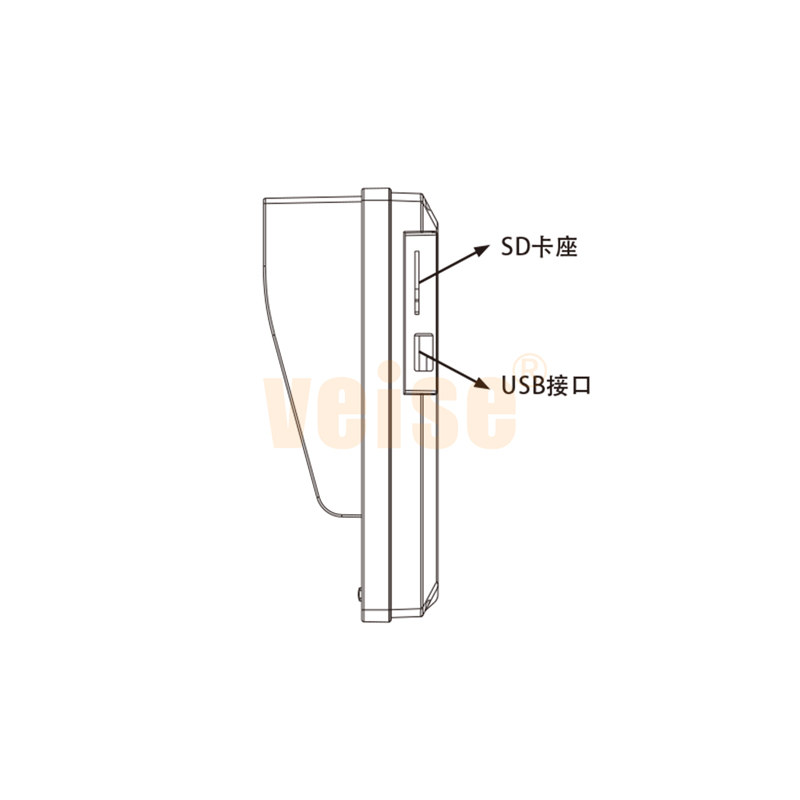

storage capacityexternal TF card (maximally supports 512G）
OSD Menu FunctionSupport the functions such as single-channel picture flipping left and right, up and down, reverse scale, reverse trigger, reverse delay, reverse priority, power-off memory, etc. Menu language: Chinese / English (optional).
Color StandardPAL/NTSC (AUTO)
Brightness (cd/m2)600
Contrast level800：1
surge and load dump protectionISO16750-2 standard (24V system Us=174V,Ri=4Ω,td=350ms
Connector Socket18-core S terminal
Working Temperature-20℃ to +70℃
Storage Temperature-30℃ to +80℃
Working VoltageDC11-32V
anti-vibation rateGB∕T 2423.56-2018 standard (random 5G vibration)

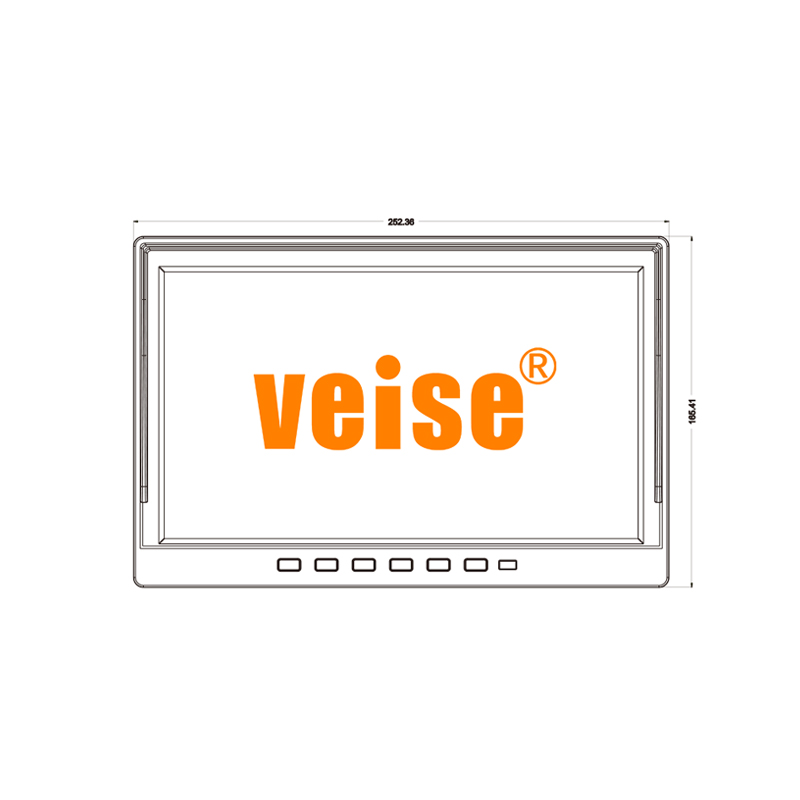

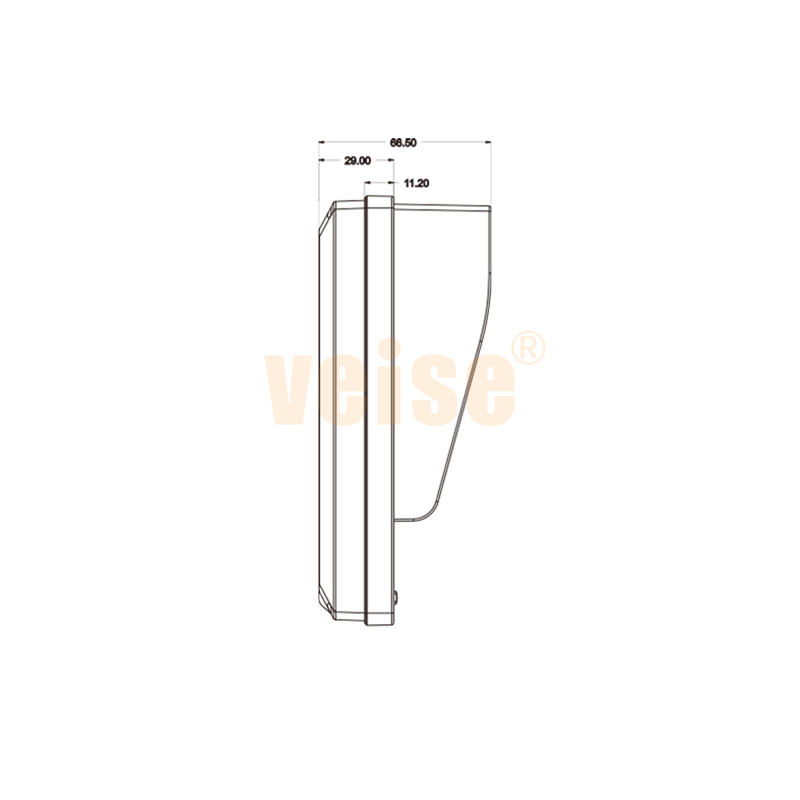

Size(L x W x T) (251.5 x 165x 66mm)
Weight1140g

Product Applications

*This product information is for reference only! If there is any change, the actual product shall prevail, the final interpretation right belongs to our company!
