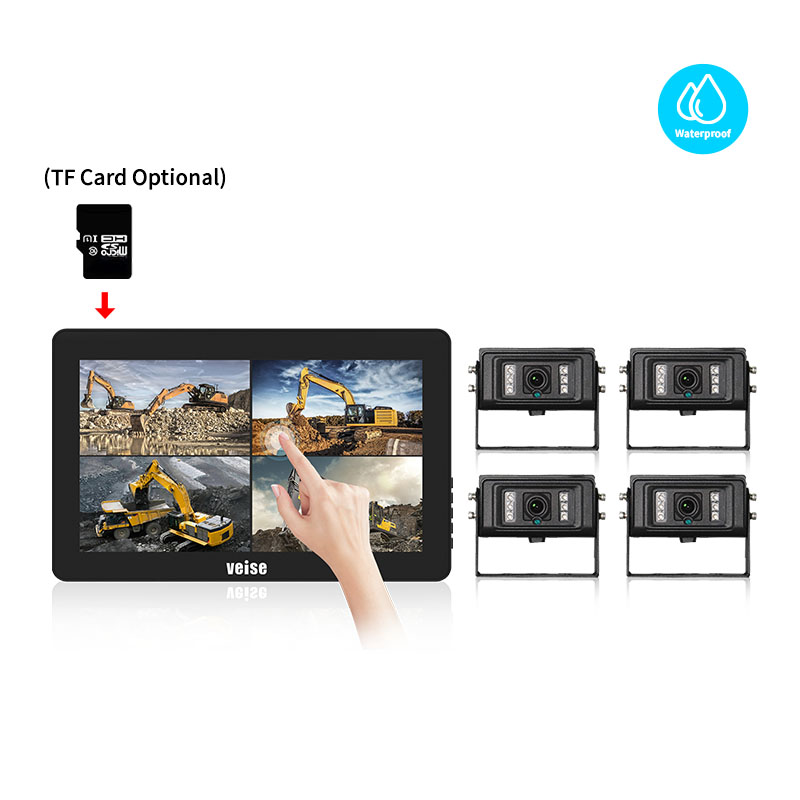

DVR Monitor Camera System

  • Model : HDS-1014MD162M4

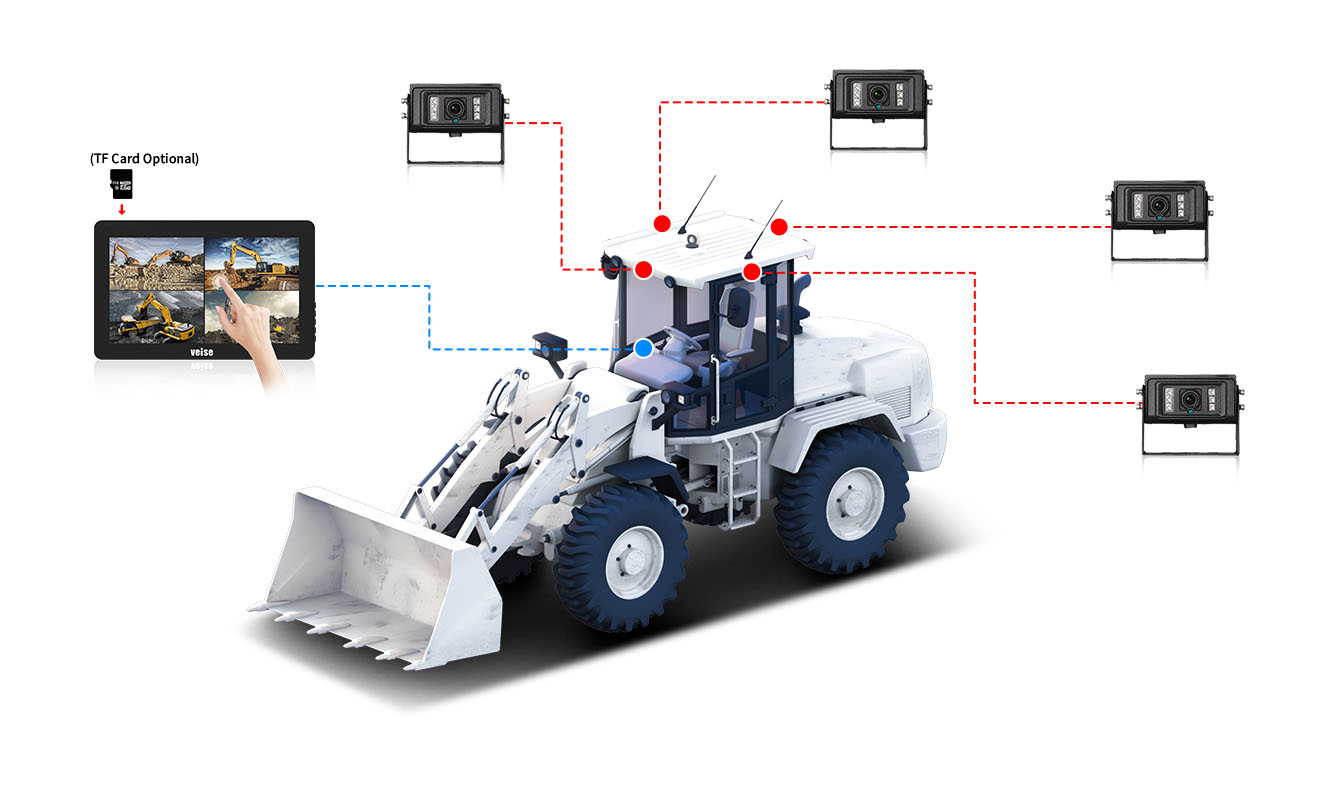

  • Summarize : Due to the high concentration required by vehicle and machinery operators, they often do not have the time to constantly monitor the vehicle's rearview monitor image screen. This is especially true in situations where no reverse radar warning system is installed. During vehicle operation, this can easily create safety hazards for personnel, leading to economic losses.The HD quad monitor rearview camera system not only eliminates the need for the complex wiring and installation of reverse radar,but also allows the 4 CH HD camera to capture personnel in the monitoring area in real time, The all-round monitoring screen is displayed on the monitor to remind the driver, thus enhancing vehicle operation efficiency, eliminating safety hazards, and preventing economic losses. The touch screen monitor supports real-time recording, playback.
  • More Info : Online Service

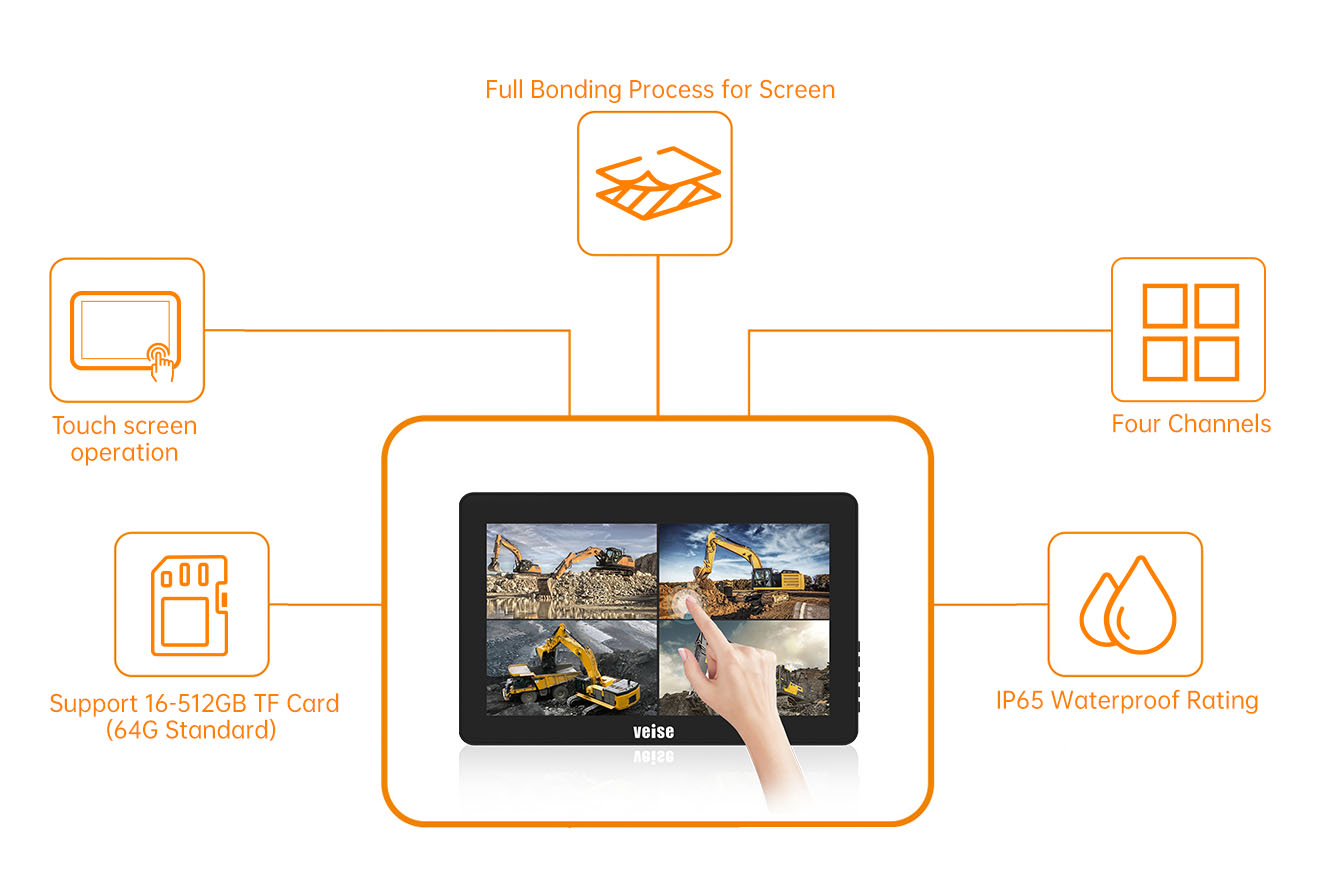

Product Features

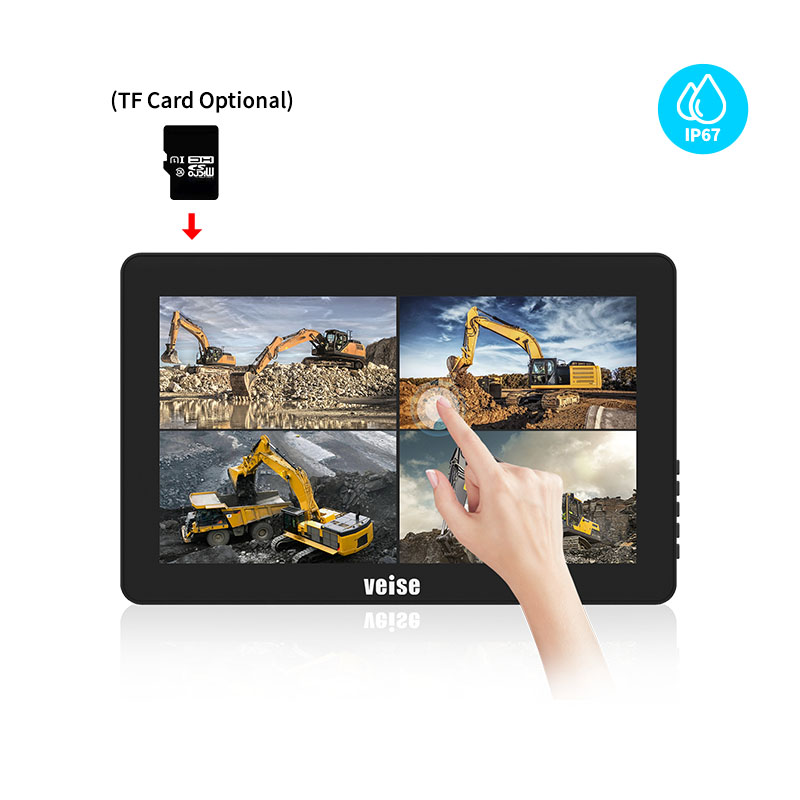

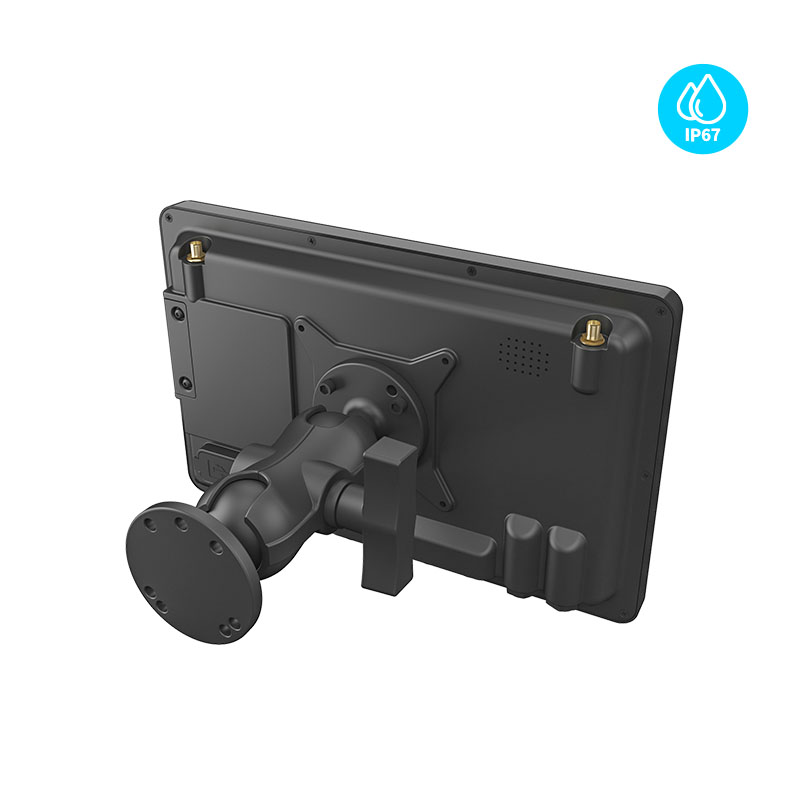

HD DVR Touch Screen Waterproof Monitor

Waterproof Rating: IP67

Shell Material:auminum alloy is beneficial for heat dissipation.

Full Bonding Process for Screen: the protective glass panel, touch screen and display screen of the monitor adopt a space free fully bonded process structure, eliminate specular reflection to ensure clear and transparent image screen.

Display Screen: 10.1-inch IPS screen with fast response speed, wide viewing angles, true colors, resolution of 1024RGBx600.,graphical menu for easy and quick operation.

DVR: real-time recording and playback functionality, supports 16-512GB TF cards, SIM card slot for easy removal and insertion.

Video Input: supports up to 4-6 video inputs

Display Modes: 1/2/3/4-screen split.

Brightness (600 cd/m2): automatically adjusts based on ambient light

Power and Protection: operates within a wide voltage range of DC 8-32V. Features include pulse voltage protection against load disconnection, reverse polarity protection for external power, and LED constant current and voltage protection to prevent misuse and ensure longevity.

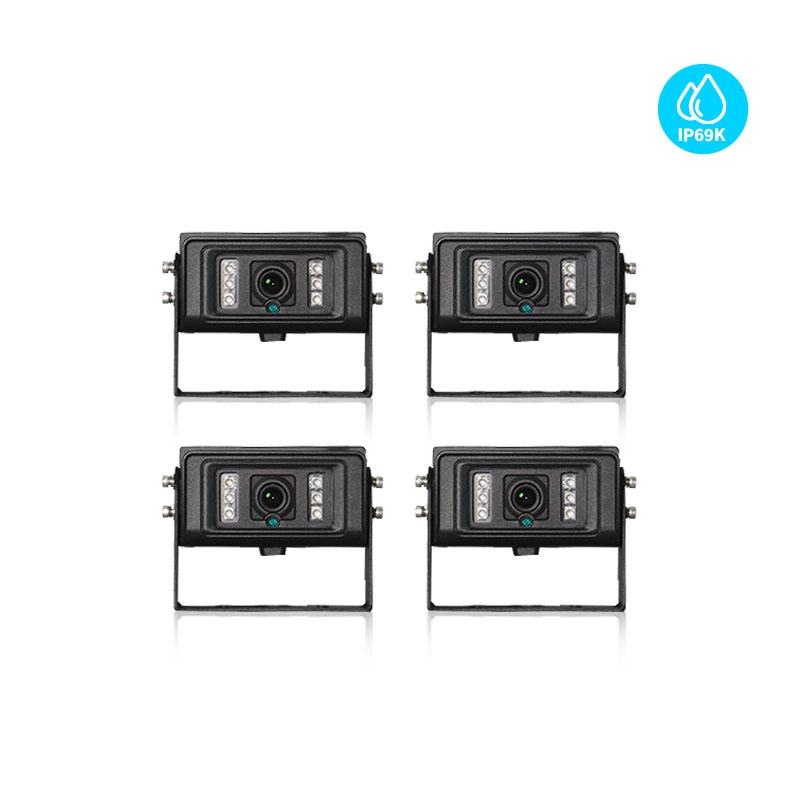

HD Waterproof BackupCamera

Automotive-grade DSP, 2 million high-definition pixels, IP69K waterproof rating, IR LED night vision function, cold-resistant and waterproof signal output line.

Video Power Connecting Cable

Material: 4-core phosphor bronze aviation plug with dual-shielded connection cable for good anti-interference.

Features: Low impedance, minimal signal transmission attenuation, double injection-molded aviation plug tail cable for excellent tensile and swing resistance.

Product Parameter

System Model

HDS-1014MD162M4-64G

HDS-1014162M4

Monitor ModelMHD-1014MD-64GMHD-1014
Display10.1-Inch IPS Screen
Resolution1024×(RGB)×600
Video Input

4 Channels (1080P/960P/720P/CVBS) Of Signal Mixed Input

Screen Modes1/2/3/4-Screen Split
OSD Menu FunctionsMirror/Normal Settings, Reverse Delay Time, Trigger Priority, Multi-Language Support
StandardPAL/NTSC (AUTO)
Viewing Angle (L/R, U/D)L/R: 85/85; U/D: 85/85
Contrast Ratio800:1
Brightness 600 (Cd/㎡) Automatically Adjusts Based On Ambient Light
Response Time (Ms)25
Video Recording FormatAVI /
Video Recording Capacity

Supports 16-512GB TF Cards(Standard 64G)

 /
Recording Resolution1080P/720P/480P /
Load RejectDC24+174V/350ms
Operating Temperature-20℃ To +70℃
Storage Temperature-30℃ To +80℃
Input PowerDC11-32V
Dimensions (LxWxT)105 X 178 X 50  (mm)

HD Waterproof Camera(CHD-162M)

Image Sensor1/2.8 Color Sony
Effective Pixel1920(H) X 1080(V)
Definition1080P
Visible Angle130°
Infrared Distance5 Meters (Built-In 6pcs Of 850nm Infrared Lights)
Waterproof RatingIP69K
Working VoltageDC12V±10% (Powered By The Monitor)
Working Temperature-20℃ To +60℃
Storage Temperature-30℃ To +70℃
Vibration RatingGB∕T 2423.56-2018 Standard (Random 5G Vibration)
Dimension70.5(W) X 118.5(H) X 76(D) Mm

Product Applications

*This product information is for reference only! If there is any change, the actual product shall prevail, the final interpretation right belongs to our company!
