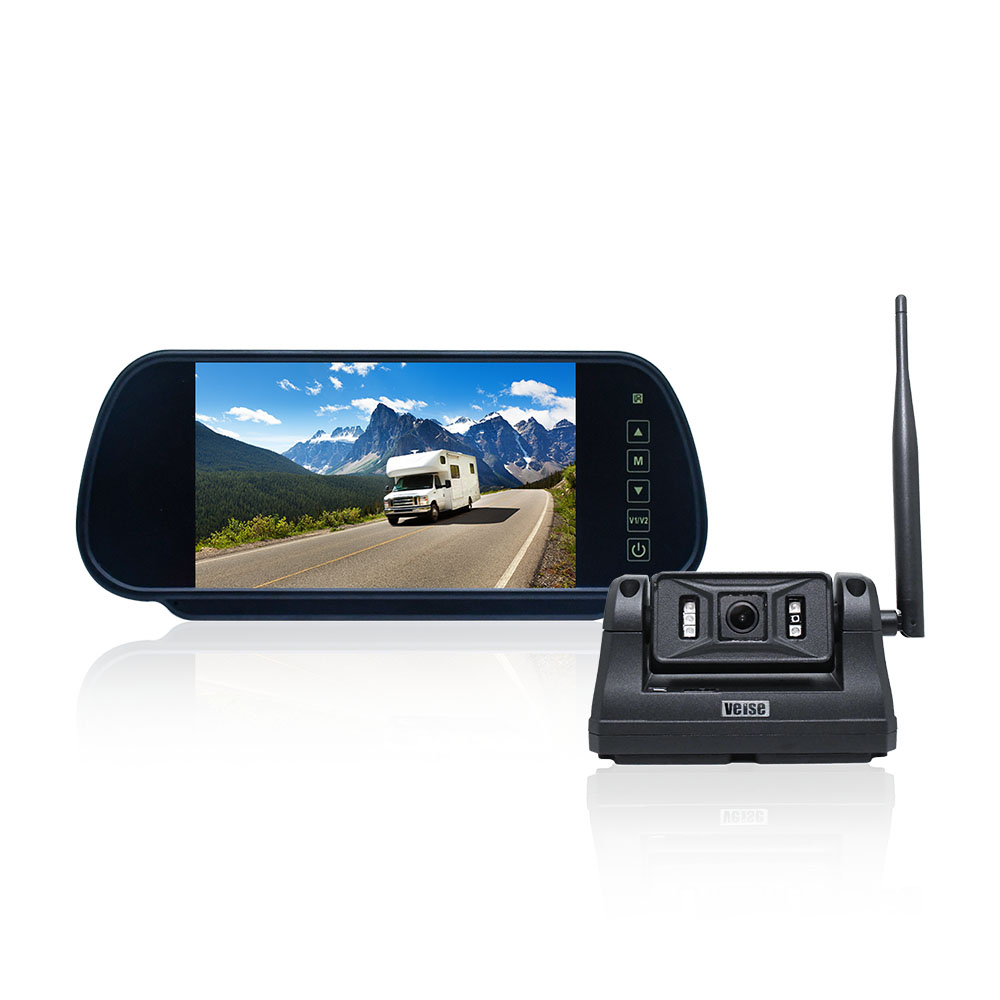

7-inch 1080P Electronic Rearview Mirror Wireless Camera System

  • Model : HDWS-7104H362M1
  • Summarize : Wireless monitoring systems use radio waves to transmit video, audio, and control signals. They are a quick installation solution when wiring is impractical or impossible. Vehicle-mounted wireless monitoring systems are particularly well-suited for operations involving telescopic forklifts, cranes, construction tower cranes, port container gantry cranes, as well as mobile monitoring needs for home and urban public security.
  • More Info : Online Service

Product Features

7-Inch HD IPS Monitor:

  • Equipped with vehicle-grade industrial DSP

  • OSD menu for settings, including image mirroring, normal view, reverse guidelines, and priority trigger functions

Wide Operating Voltage:

  • DC 8~32V

  • Independent power output

  • Load pulse voltage protection

  • External power polarity reverse protection

  • LED constant current and voltage protection to ensure safe use and product longevity

Wireless HD Vehicle-Mounted Waterproof Camera:

  • 1080P resolution

  • 2.4GHz wireless transmission

  • Built-in 8000mAh fast-charging battery

  • Magnetic attachment

  • Vehicle-grade DSP

  • High-definition with millions of pixels

  • IP69K waterproof rating

  • IR LED night vision capability

Product Parameters

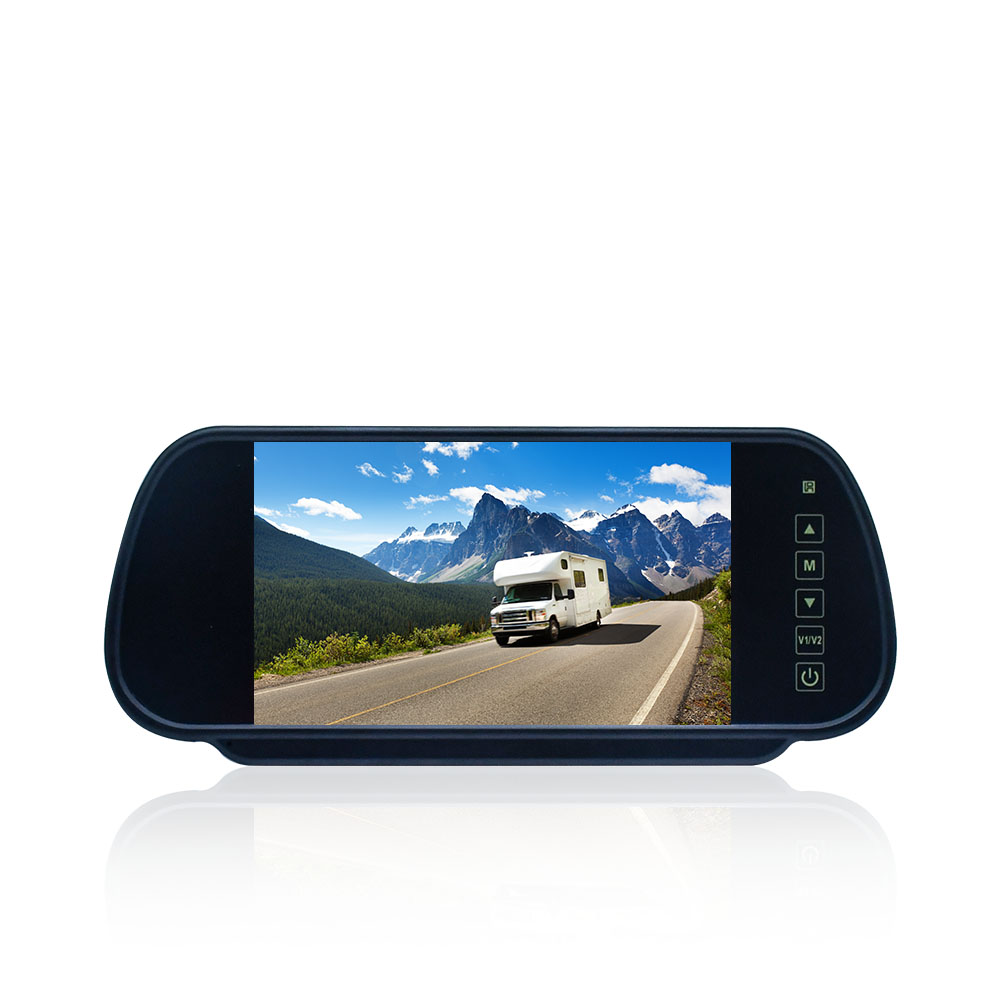

HD Monitor (MHD-7104H)

Color Monitor7-inch IPS screen
Resolution1024(H) x 600(V) dots
Video InputAHD1080P / 720P / CVBS
Screen ModeSingle screen
Color SystemPAL/NTSC (AUTO)
Brightness (cd/m²)600
Load DumpISO16750-2 standard (24V system Us=174V, Ri=4Ω, td=350ms)
Vibration ResistanceGB/T 2423.56-2018 standard (random 5G vibration)
Operating Temperature-20℃ to +70℃
Storage Temperature-30℃ to +80℃
Operating VoltageDC11-32V
Dimensions (L x W x T)193 x 118 x 35 mm

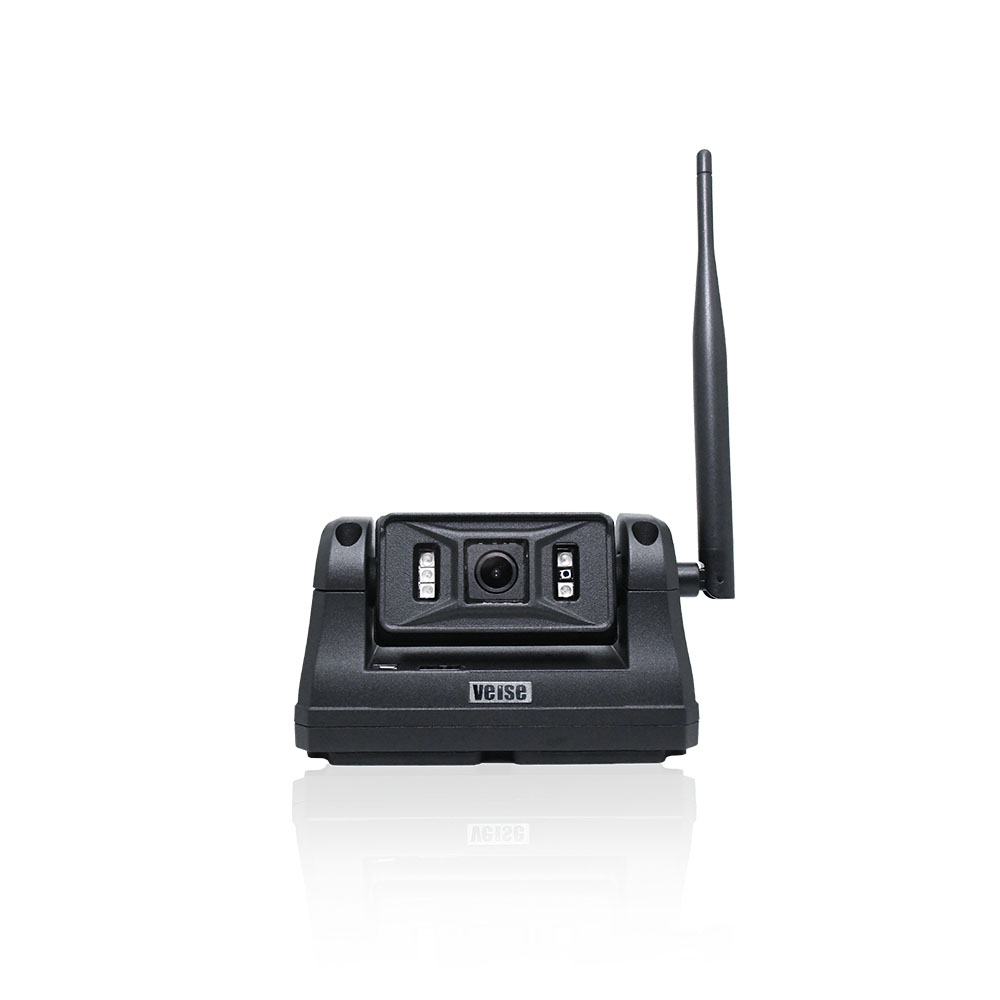

1080P Wireless HD Built-in Battery Waterproof Magnetic Camera (CWHD-362M)

Image Sensor1/2.9 Color CMOS
Wireless TransmissionBuilt-in 2.4G digital wireless transmitter
Transmission Power18dBm
Transmission DistanceUp to 200m Clear Line of Sight
Resolution1080P
Effective Pixels1280(H) x 960(V)
Viewing Angle130°
Infrared Distance5 meters
Housing MaterialAluminum alloy
Waterproof RatingIP69K
Battery TypeLithium polymer battery
Battery Capacity8000mAh (3.7V) 29.6Wh
Input InterfaceType-C waterproof interface (with QC2.0 fast charge protocol) 12V/1.5A
Power ScreenFast charge indicator and 25%-50%-75%-100% power indicator
Battery SwitchTouch switch
Charging Cycle Temperature0℃ to +40℃
Charge/Discharge Cycles>800 times
Discharge DurationAbout 20 hours
Installation MethodSilicone magnetic base installation
Operating Temperature-10℃ to +60℃
Storage Temperature-20℃ to +70℃
Vibration ResistanceGB/T 2423.56-2018 standard (random 5G vibration)
Dimensions (W x H x D)138 x 80 x 70 mm (excluding antenna)

Product Applications

*This product information is for reference only! If there is any change, the actual product shall prevail, the final interpretation right belongs to our company!
